Sony VPL-VW600ES 4K Projector - Advanced Calibration Information

Posted on March 4, 2014 by
This is the advanced calibration information for the Sony VPL-VW600ES projector, available only to our paid subscribers.

Color Management Settings (CMS)

Color Management Settings
Red Green Blue Cyan Magenta Yellow
Hue 0 3 0 2 4 0
Saturation 0 0 -1 1 0 -2
Brightness 3 1 -2 1 2 1

Mike's Notes

As usual, Sony provides a range of color spaces that tend to make a CMS unnecessary.  BT.709 is about as close as you can get to the Rec. 709 standard.  Color Space 1, 2 and 3 expand the gamut to varying degrees, with Wide 3 being the largest gamut of the three.  As far as picture quality is concerned, the different color spaces used by TV, the Cinema Film and Bright modes make for more saturated colors, but are less accurate.

Calibration Charts (Before and After)

Click to enlarge these charts, pre- and post-calibration.

Sony VPL-VW600ES Calibration Charts

Sony VPL-VW600ES CIE Chart Pre-Calibration

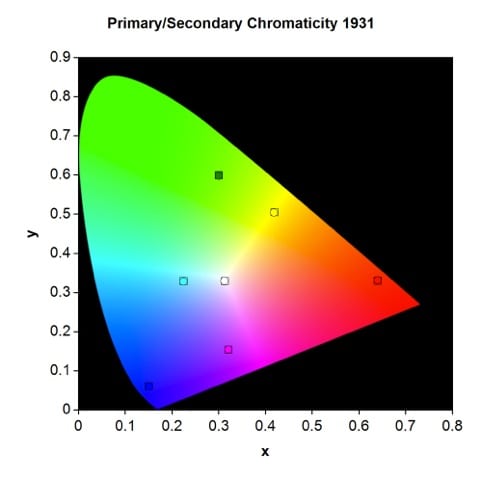

Sony VPL-VW600ES CIE Chart Post-Calibration (CMS)

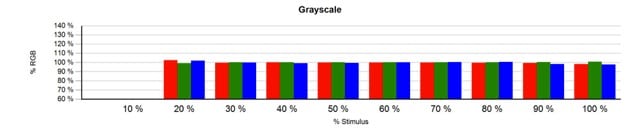

Sony VPL-VW600ES CIE Chart Grayscale

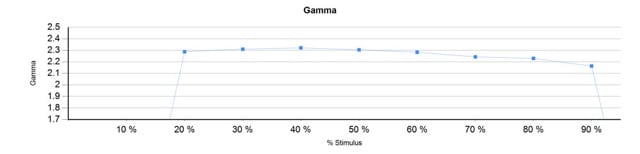

Sony VPL-VW600ES Gamma Chart
