OVERVIEW

The Optoma UHD50X is a relatively compact and lightweight projector of 8.60 lbs.This projector can be physically placed in any of the traditional positions either mounted above, with an optional mounting plate, or placed into position on an accessale surface. Since this is a Cinema Gaming projector, it’s designed to be easily moved and set up in a variety of locations. The included lens shift, both manual and digital, along with the vertical keystone controls make the UHD50X easy to set up in a wide range of environments.

The UHD50X uses a lamp as the light source and can therefore generate a lot of heat. To assist with this venting process, Optoma has built-in air vents all around the body of the projector. The projector’s lens focus control is located in a ring around the lens assembly on the front of the projector. Zoom controls, the manual lens shift dial and the projector’s control panel are located on the top of the body. The input and connector panel is located on the rear of the projector.

INPUTS AND CONNECTORS

Let’s take a quick look at the back panel of the UHD50X. There is a USB port for service only, along with a 2RS-232 connector. The UHD50X offers a variety of video outputs including a VGA In. There is one HDMI 1.4a (HDCP 2.2 / 4K 30Hz compatible) connector and one HDMI 2.0/ MHL 2.1 (HDCP2.2 / 4K 60Hz compatible). The projector’s second USB port is for Power Out (5V/1.5A) allowing you to power smart devices up to 5V/1.5A like the Amazon FireStick or ROKU stick. The UHD50X sports a high-quality S/PDIF connector, 12-volt Out for uses such as triggering screens, a 3.5mm audio input and 3.5mm audio output. As this is a home entertainment projector, there are no networking ports on this device.

LENS

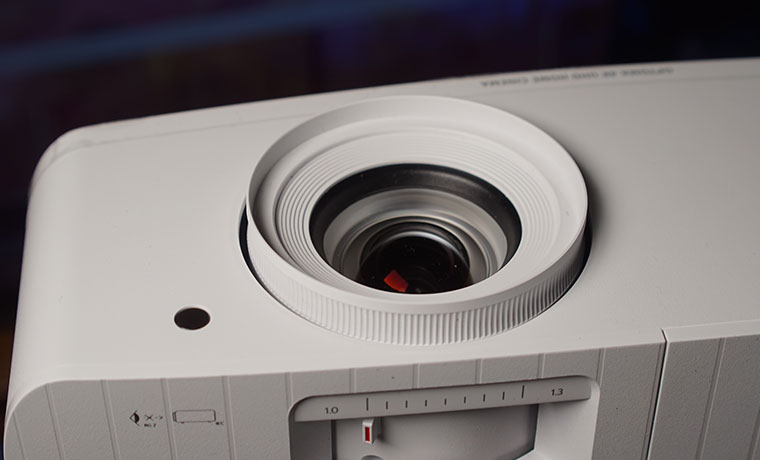

The Optoma UHD50X has a manual lens with an outer ring on it to control focus and a zoom range of 1.3x and a throw ratio of 1.21~1.59. The throw distances can quickly be calculated based on the width of the screen. For example, on a 100′′ wide image, the throw distance would be between 8.78 to 11.54 feet.

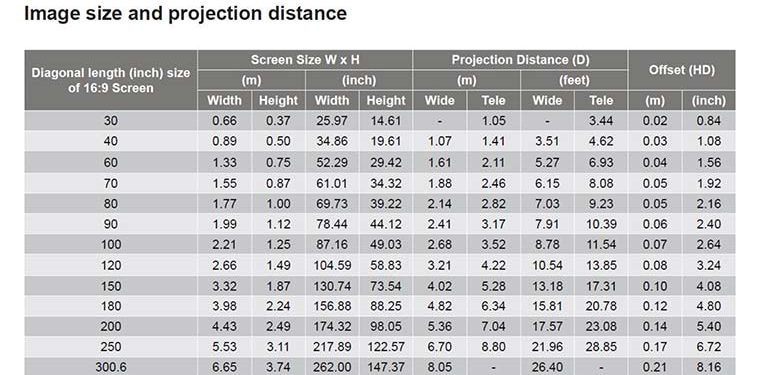

Since screen sizes are often listed as diagonal and to eliminate the need for algebra, we’ve provided this chart for easy reference.

Throw Distance for a 16:9 Screen

Optima-UHD50X-ThrowRatio#2

The UHD50X also offers vertical optical lens shift. This allows placement of the projector at the top or bottom edge of the screen with 105%~115% (tolerance ±5%). Like all projectors with vertical lens shift, moving the image in one direction limits the amount of shift available in the opposite direction.
Maximum shift in one direction comes when the other is perfectly centered. For example, if you were to place the projector at the top of the image, it would be ideal to center the unit on the width of the screen.

The vertical lens position adjustments are made using a dial located on the top front of the projector. The image moves accordingly as you turn the wheel, until you reach adjustment limits.

This ability to move the image location via optical lens shift provides the best image quality as compared to digital geometry adjustments. For a little more adjustability, the Optoma UHD50X also includes vertical keystone correction.

CONTROL PANEL

The Optoma UHD50X has a control panel with a simple configuration. Three indicator lights sit above a standard nine-button arrangement, with some of the buttons having dual functions. Those three indicator lights are for On/Standby, Lamp, and Temp. At the top left, there is the Power button, with the Information button directly opposite. On the bottom left corner is the Menu button. An additional IR sensor for the remote control is at the bottom right.

Four buttons surround the center button in a plus-sign configuration, which is for Enter. These are the directional arrow keys: Up, Down, Left, Right. They all serve dual functions. The Up and Down buttons are for adjusting the vertical keystone correction. The Left Arrow button also brings up the Source Menu, and the Right Arrow button is the Re-Sync button for syncing 3D.

REMOTE CONTROL

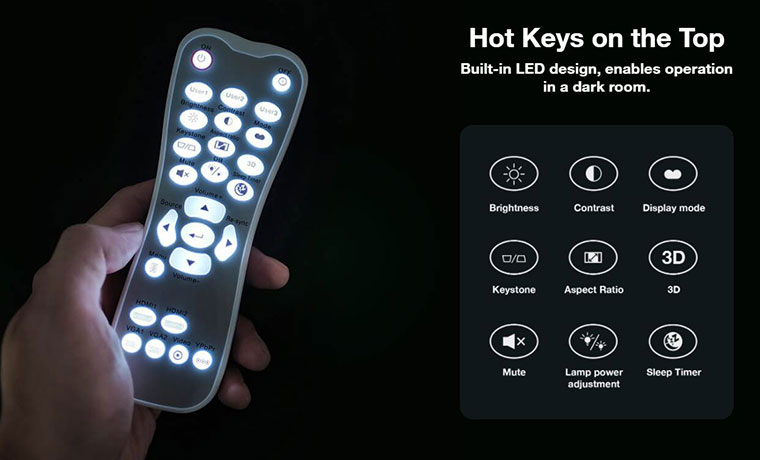

The Optoma UHD50X comes with an easy-to-use remote control. It’s lightweight and fits comfortably in the hand. It has one-touch access to color modes and different input sources. The top row consists of two buttons: On and Off.

The first row of buttons are for accessing the three User Modes, followed by Brightness, Contrast, and Mode (to change the Display Mode). The second row of buttons are for Keystone Correction, Aspect Ratio, and 3D. The final row of this section has the Mute button, Dynamic Black button, and a Sleep Timer button.

The next section has four directional arrow keys surrounding a traditional Enter button. Each arrow serves a dual function, such as Volume + and Volume – or Source, and Re-Sync. On the bottom left, there’s also a Menu button for quick access to the menus.
The final section of the remote control has all of the source input buttons – HDMI 1, HDMI 2, VGA 1, VGA 2, Video, and YPbPr. Since the projector only has inputs for the HDMIs, you won’t be using the majority of these buttons.

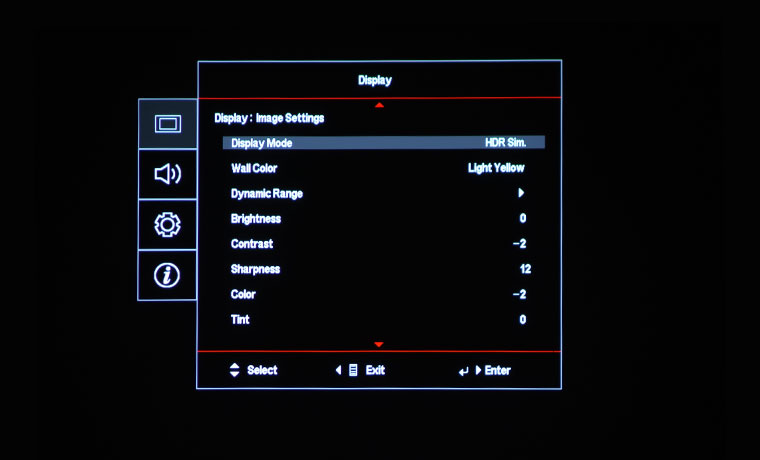

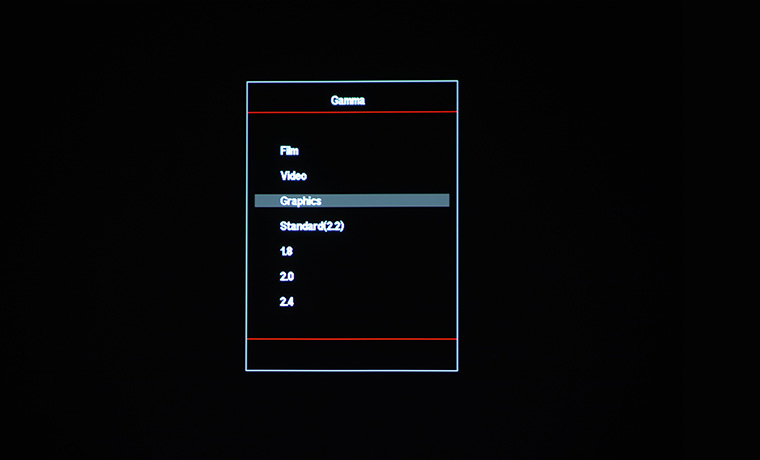

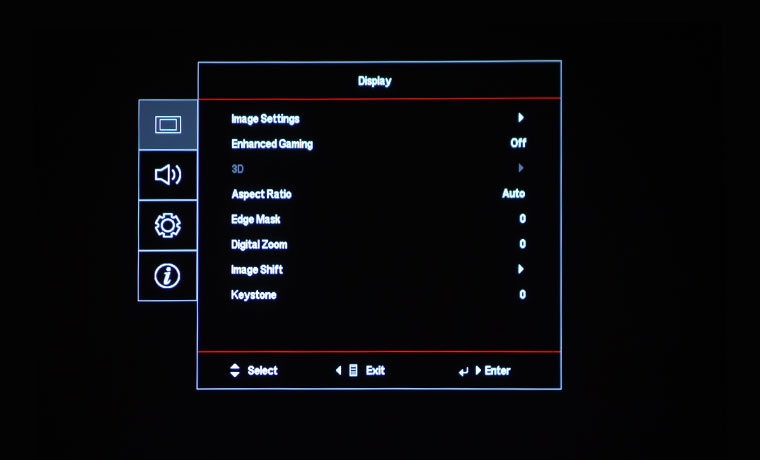

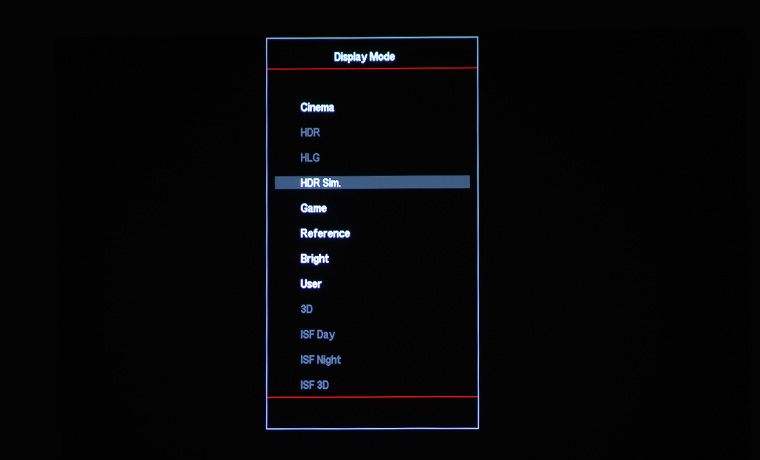

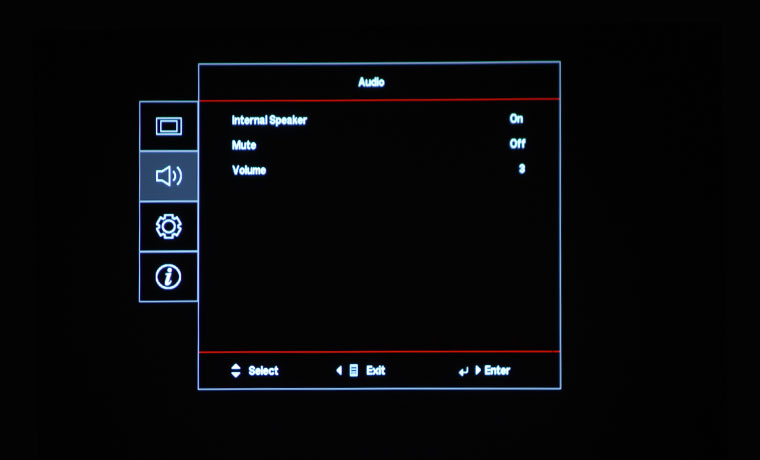

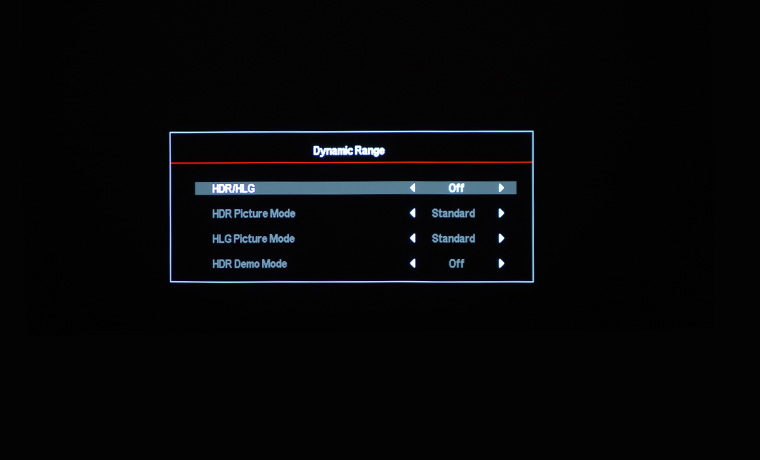

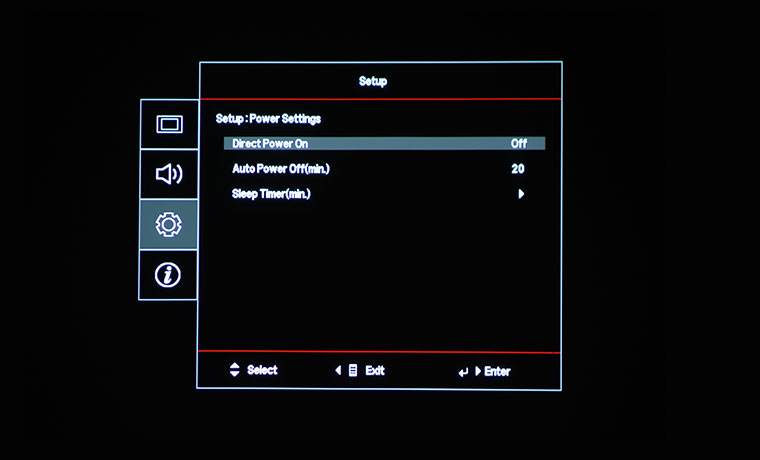

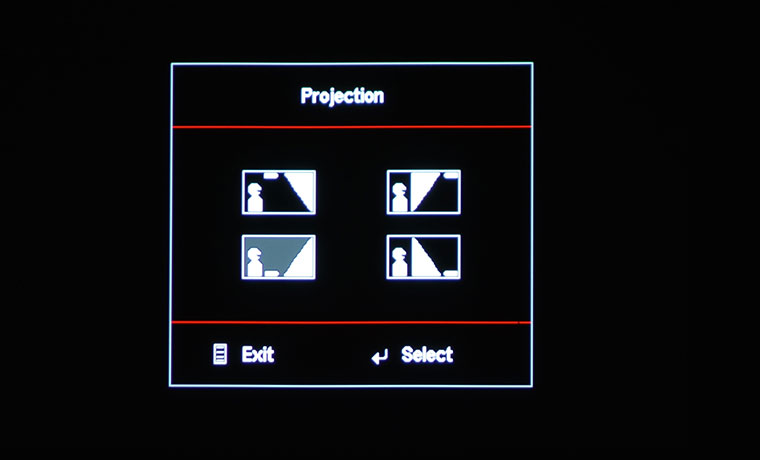

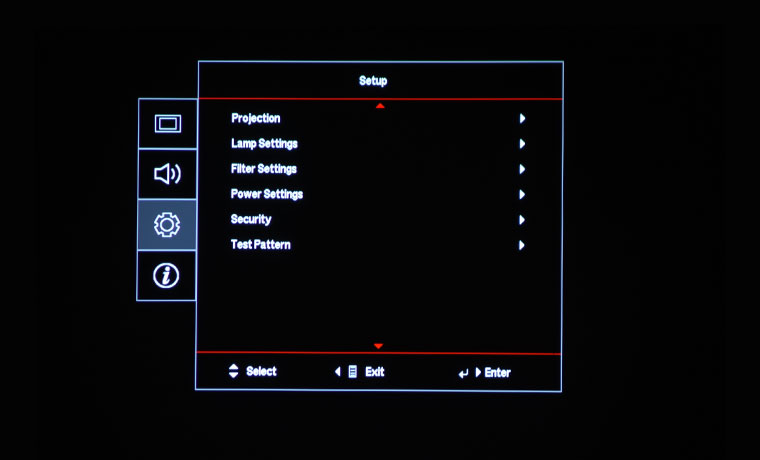

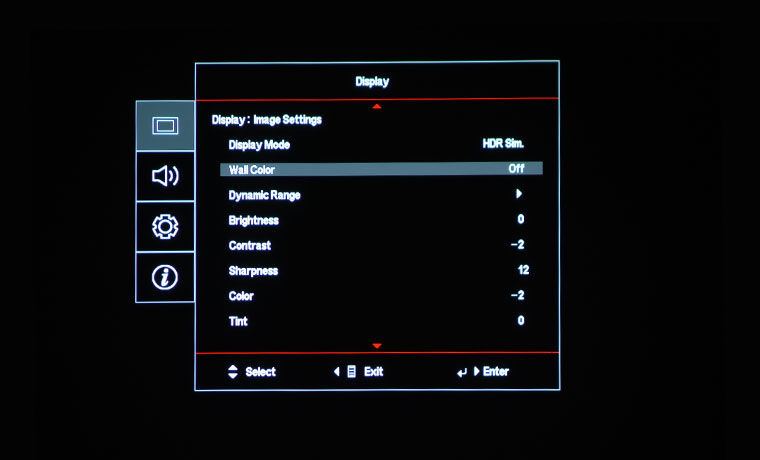

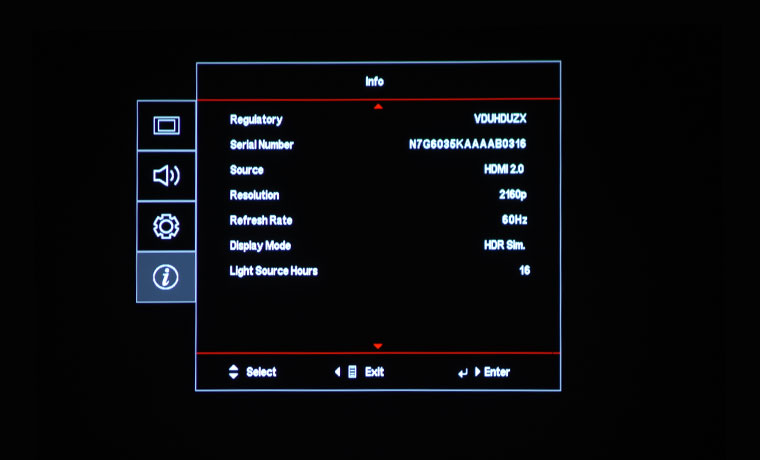

MENUS
