Sony LaserLite VPL-PHZ10 Laser Projector Review

Posted on April 13, 2017 by Art Feierman

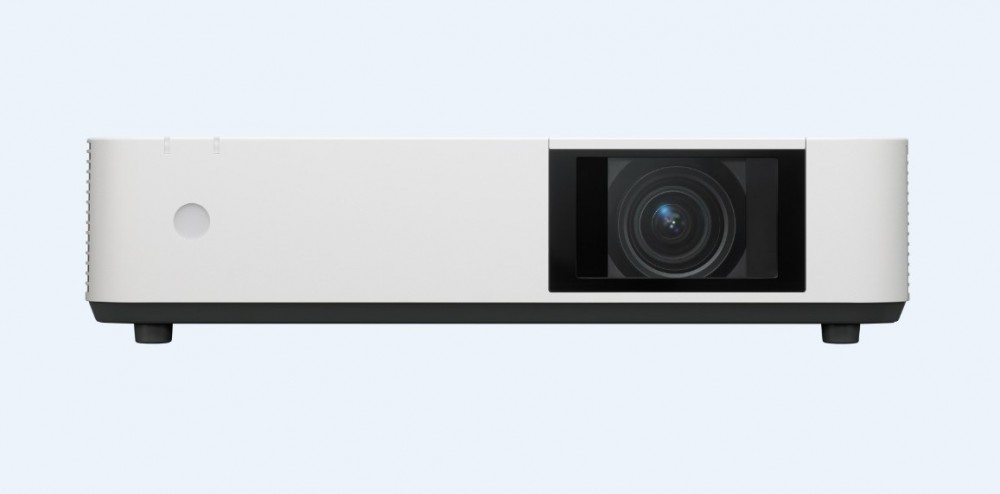

The WUXGA resolution VPL-PHZ10 projector is one of Sony’s two newest laser projectors.  These LaserLite models are billed as the first affordable laser projectors for business and education. The other model is the VPL-PWZ10 which is very similar, but lower resolution of WXGA (1280x800). Both have some impressively high list prices, but Sony reports that these two new laser projectors should street price right around $3000 for this PHZ10, while the PWZ10 should street for about $2199. The lower cost PWZ10 should start shipping in August while this model, the VPL-PHZ10 is scheduled to ship first - in June, in line with the Display industry’s big Infocomm show).

For our review we were provided with an engineering sample of the VPL-PHZ10 projector. As such, we understand there will be a number of minor changes, and fixes. Still, this sample performed extremely well on all the usual types of content. The feature set is impressive, and virtually everything seems to be fully functional on the demo, although we, as usual, do not test LAN networking.

View Full Specifications Here >>

Sony VPL-PHZ10 Specs

Native Resolution1920x1200
Brightness (Manufacturer Claim)5000
Zoom Lens Ratio1.45:1
Lens ShiftYes
Lamp Life20000 hours
Warranty5 years or 12,000 hours (whichever comes first)


I was particularly interested in bringing in one of these Sony laser projectors early, because I see them as serious players in the education marketplace, especially higher ed and specialty (such as museums), and wanted to review in time for our May annual Best Education Projectors report (this is a link to last year’s).

This review is focused on the VPL-PHZ10, but a shorter “First Look” review for the PWZ10 will also be created, that one will just consider the differences, and how that relates to the competition, but will reference this review for more details (no point in duplicating all the content where both projectors are indentical. For example – both have exactly the same menus, and remote control.

Let’s continue this overview, then get into the highlights of the projector, and then turn the pages for

  • A closer look at a number of special features.
  • A Tour of the hardware and menus
  • Picture Quality, including color handling, black levels and general related
  • Performance – our measurements for brightness in the various modes, and “light engine” settings (Standard, Medium, Low)
  • Summary, including, overall value proposition, competition, Pros and Cons

It was the early info on these projectors, which I received under NDA (non-disclosure agreement), that inspired my Feb 2017 article on “Affordable laser projectors”   Publication of that article was delayed slightly until the official Sony announcement of these projectors, so I could talk about them in the article.

Until now, for the most part, street prices on laser projectors have been upward of $5000, making $2199 and $3000 street prices a major game changer.   It should be noted that unlike most far more expensive laser projectors, these two Sonys have a good range zoom lens, but no optional lenses.  That helps keep the price tag down.

The question is how well these models will do, in taking business from even lower cost, non-laser projectors with similar features other than the light source. My article touches on that a bit. In fairness, there are relatively dim LED projectors out there for far less (small affairs often called pico or pocket projectors, but the brightest of those top out at 1000 lumens these days. There’s also Casio, who  has made “affordable solid state projectors” for more than half a decade. The Casios cost well less than the Sonys, but although a good bit brighter than the pocket projectors, they tend to measure in the 2000 lumen range or less – still a good bit less than most lamp based projectors.

The short version is, here are 5000 lumen projectors with networking, some features that are typically found only on laser projectors, but otherwise, these models look very much like typical lower cost fixed install projectors.

Sony, which uses all three technologies (DLP, 3LCD, LCoS) depending on the class of projector chose 3LCD for these two models.   We’ll circle back to that, later, when defining and comparing to the competition. Suffice to say, if you go with one of these, you are definitely paying a premium for the laser light engine, BUT – when all else is pretty equal, you may be surprised by how little extra. Think less than $1000 more than a lamp based equivalent – but the lamp models will have some limitations, lack some features that are more practical on solid state projectors.


  • Manual Zoom lens: 1.45:1
  • Vertical and Horizontal lens shift ( Vertical: unequal +20% to 55%), Horiz: +/-10%
  • Size and weight – 19 lbs, roughly 20 inches wide – a bit large for portable use, more typical for fixed install, or room to room
  • 20,000 hours at full, 14,000 at constant brightness?   Or use medium power for 20,000 at constant 4500 lumens claimed
  • HDBaseT – allows HDMI, command and control, audio to be run over long distances on inexpensive CAT cable
  • Relatively quiet
  • Self cleaning filter (every 100 hours)
  • 360 degree operation (common in  museums, digital signage.)
  • Pocket sized remote control (no laser on board)
  • Built in 16 watt speaker

OK, time to turn the page to explore some of these features in greater detail.

Specs Preview

Sony Specs
Technology 3LCD
Native Resolution 1920x1200
Brightness (Manufacturer Claim) 5000
Contrast 500000:1
Zoom Lens Ratio
Lens Shift No
Lamp Life
