Vivitek Qumi Q7 LED Projector Review - Hardware Tour 2

Posted on April 4, 2014 by Art Feierman
QUMI Q7 LED PROJECTOR HARDWARE TOUR PAGE 2:  Menus, Remote Control, Tripod Screw

Qumi Q7 Menus

There seem to be an infinite number of menus.  That's because the main Qumi Q7 menu system is built around 3 main menus, Image, Settings 1, and Settings 2.  But between them, there are 5 different advanced sub-menus as well as others.  Below we've provided a look at almost all the major ones and advanced, as well as others even further down such as 3D.

And after you look at those, we also have a variety of the menus from the Vivitek's media players - for Photos, Music, Videos, Office documents, Text, PDF, as well as some Settings, and plenty, of sub-menus.   To keep things relatively simple, we've stuck to the menus and player lists.  Examples of photos or videos projected, pdfs, etc. are shown elsewhere in this review.

Qumi Q7 Menus

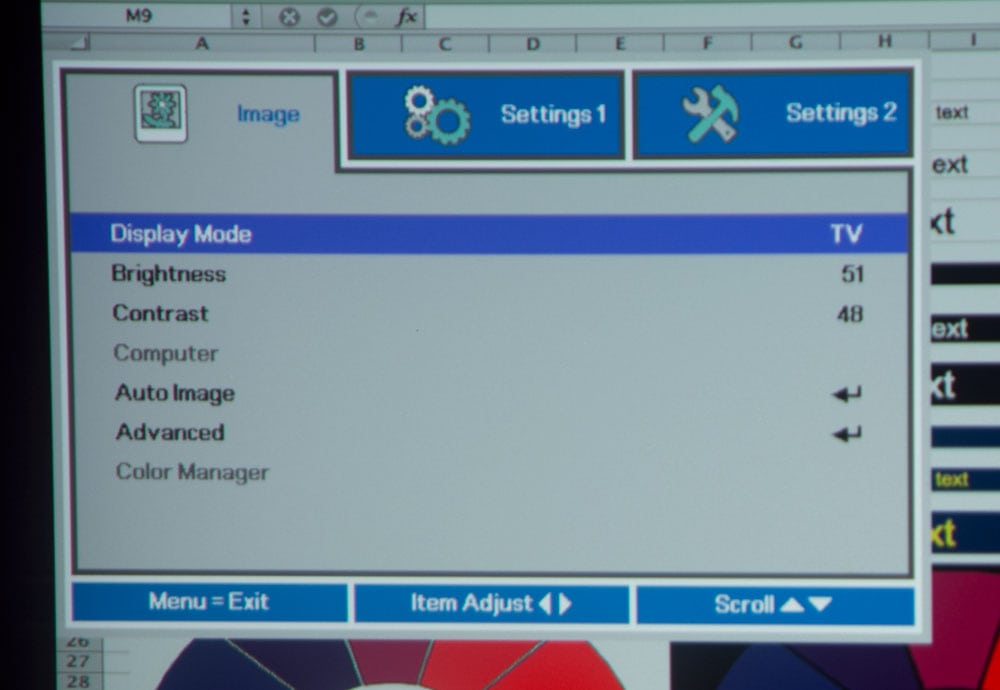

Main Image Menu

All the usual…Hit enter to bring up a list of the mode choices

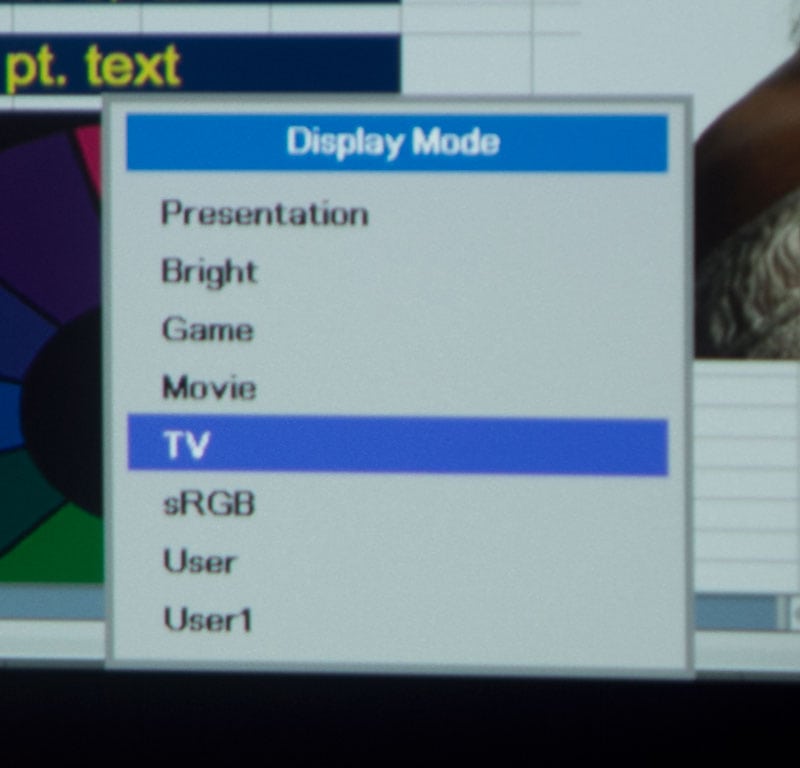

Display Modes

Here they are, six preset modes, plus User, and User1

Color Temperature Settings

When you hit return from Color Temp, it brings up choices at the bottom of the screen

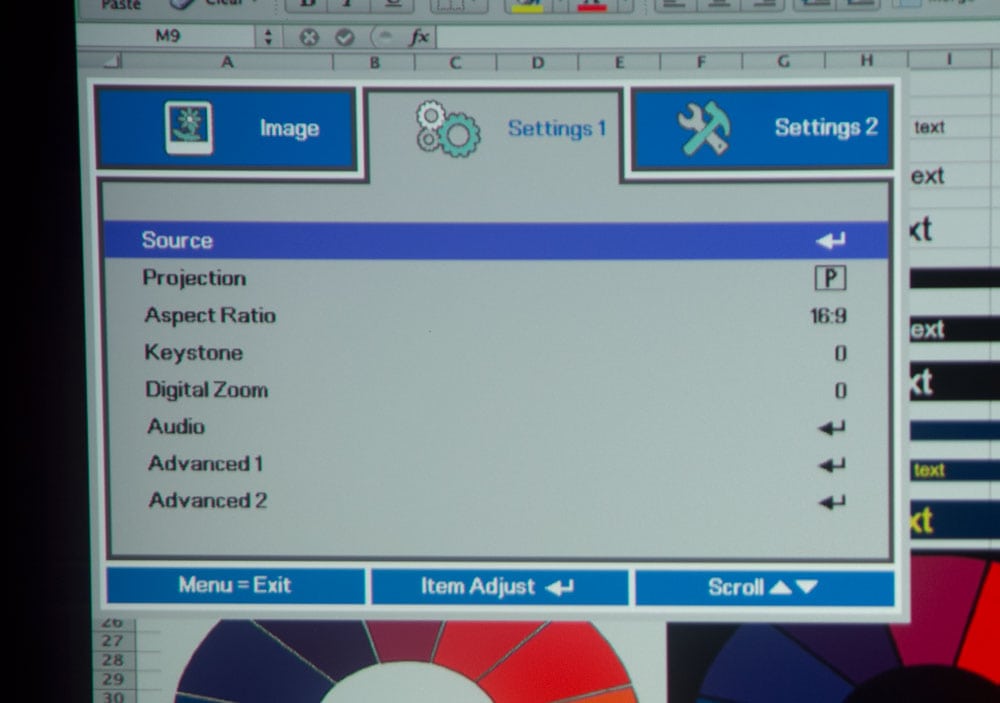

Settings 1 - Main menu

Menu has orientation, aspect ratio, Dig. zoom, keystone correction...

Settings 1 - Advanced 1

Lots of Advanced menus on this projector (5). Security features, closed captioning...

Source Selection Menu

As noted, only HDMI supports MHL. USB has its own media player menu structure

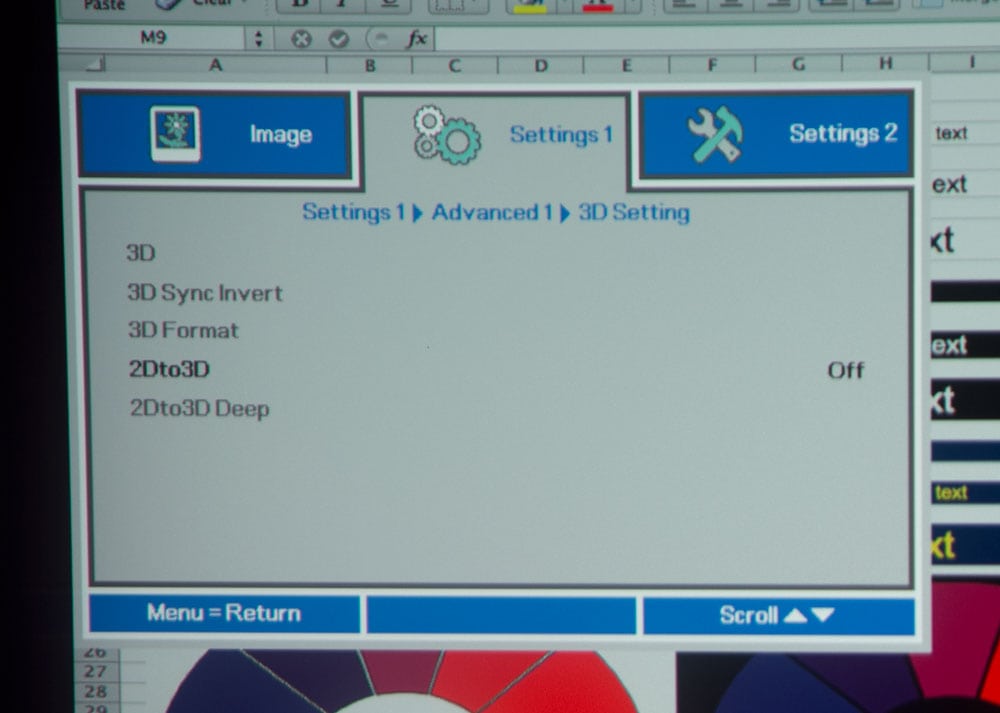

3D sub menu

Supports the usual formats, and offers 2D to 3D conversion on the fly

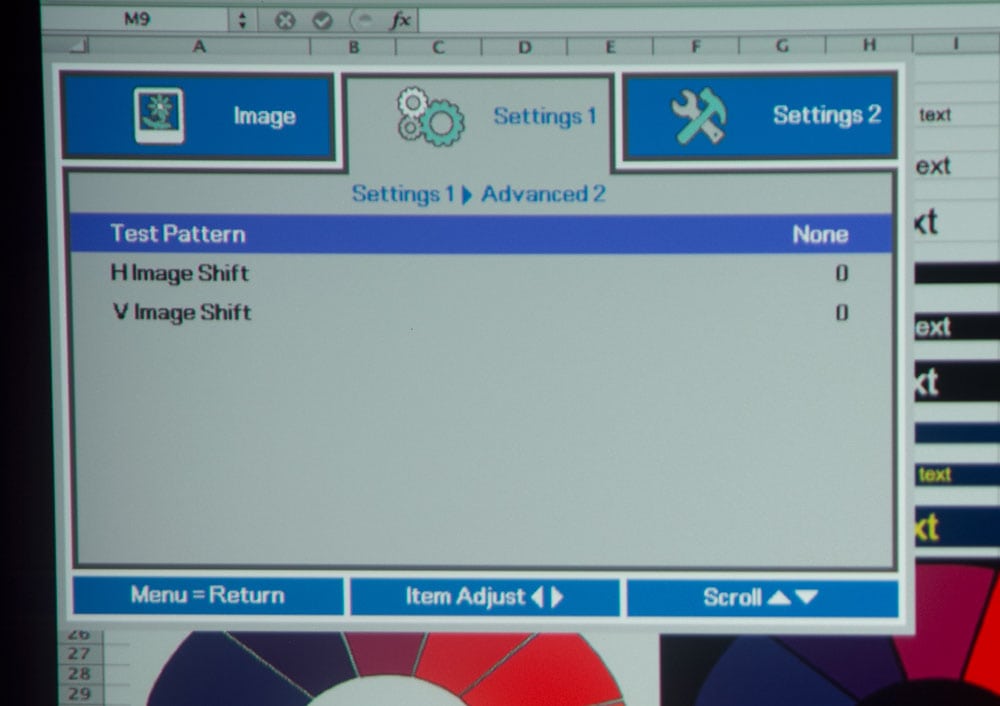

Digital Image Shift and Test Pattern

You can digitally move a non-screen filling image up/down/left or right

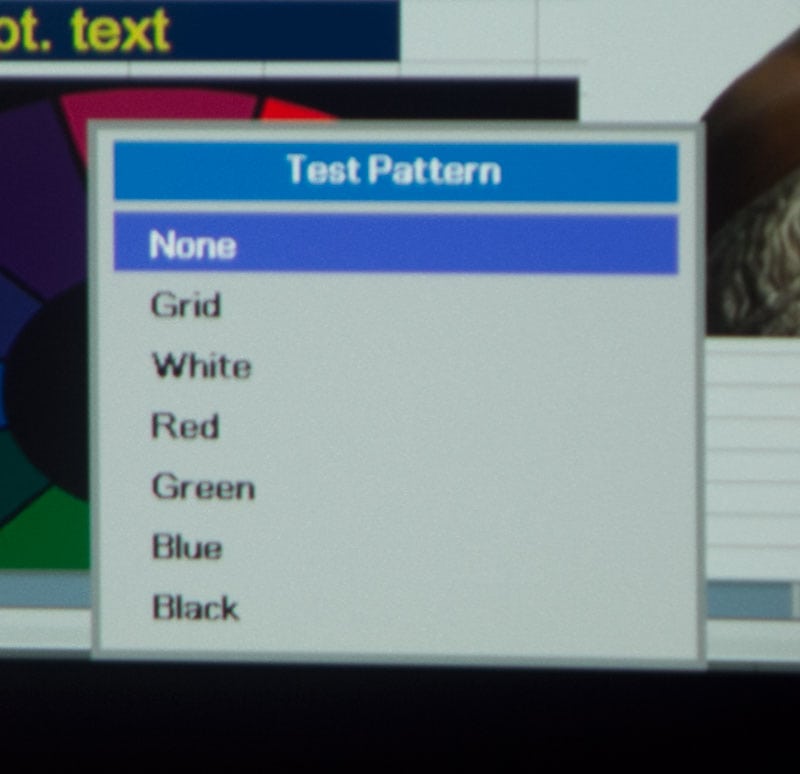

Color test patterns

Handy for basic calibrating with the right calibration disc.

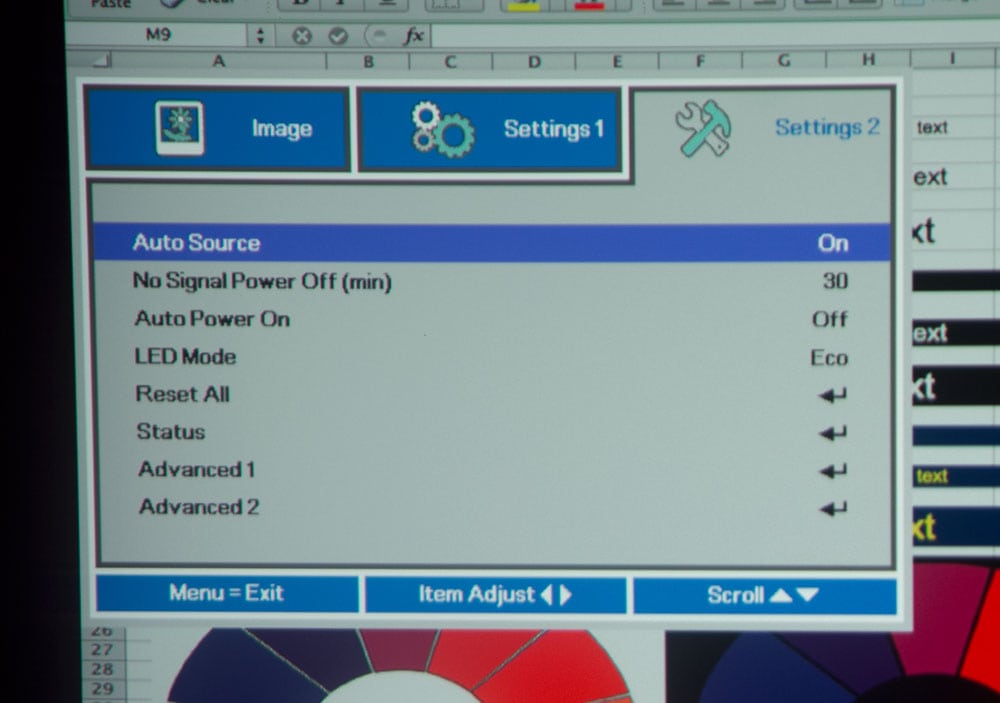

Settings 2 Menu

Mostly green options - eco power, auto shut down and timers

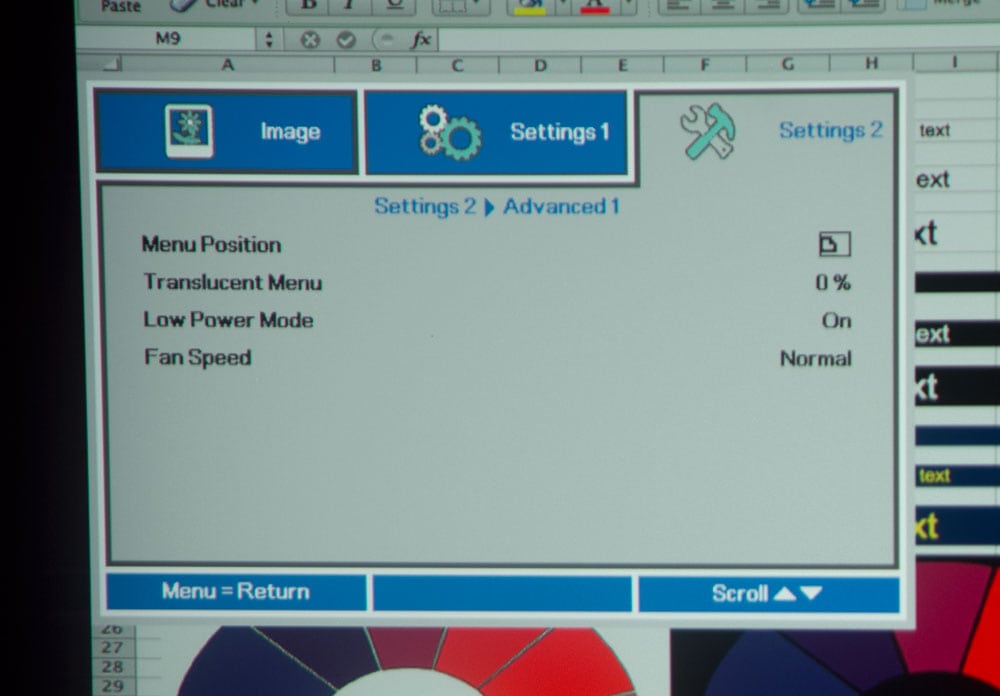

Settings 2 Advanced 1

Menu options (such as moving the Menus around, transparency, Power mode

Settings 2 Advanced 2

A sleep timer is nice. White calibration is an auto feature. Doesn't seem to do much

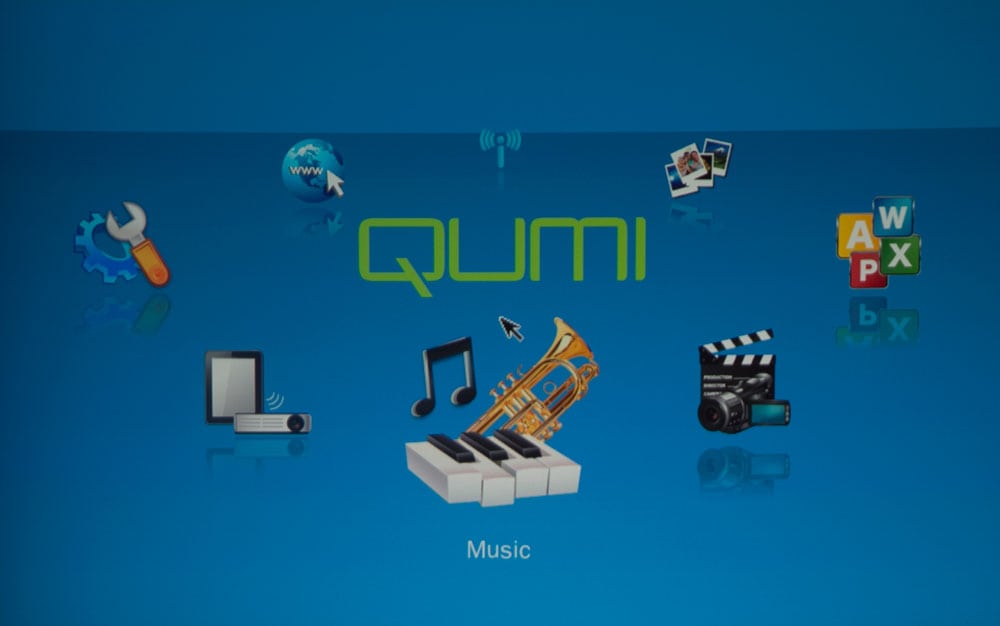

Qumi Main Screen and Media Players

Something for everyone - Music, Videos, Wifi, Settings, Photos...

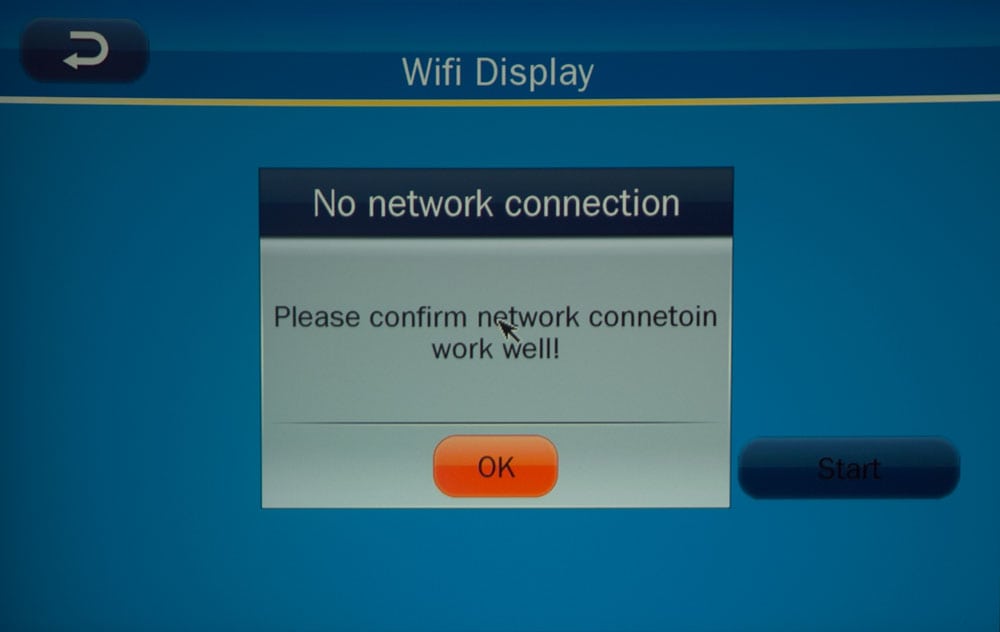

Wifi Dongle is optional

This is what you see if you choose the Wifi, without having the module

Surf the web too

If you have wifi!

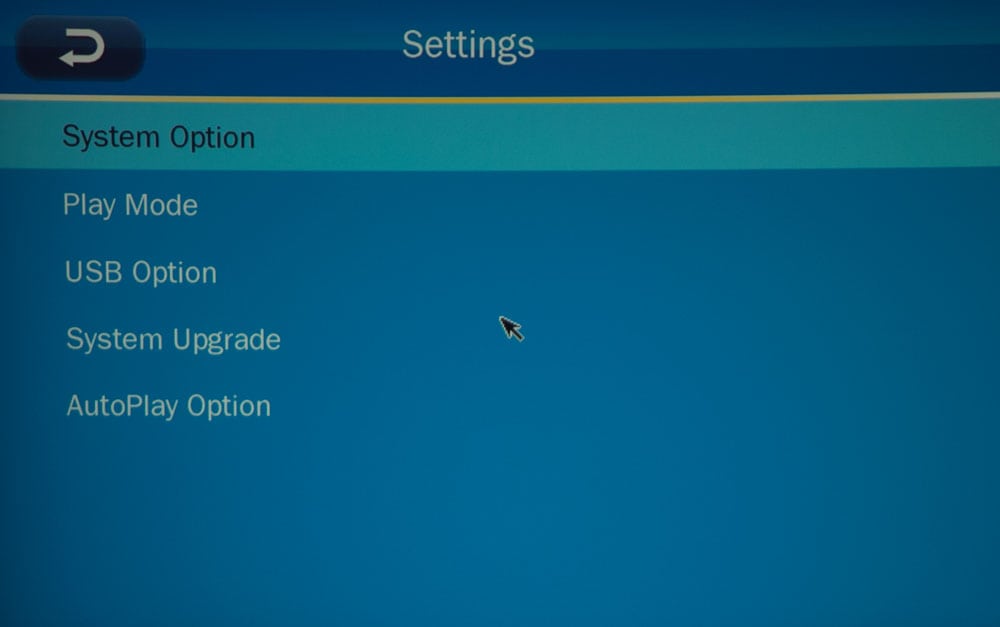

More settings

These settings menus are for the media players

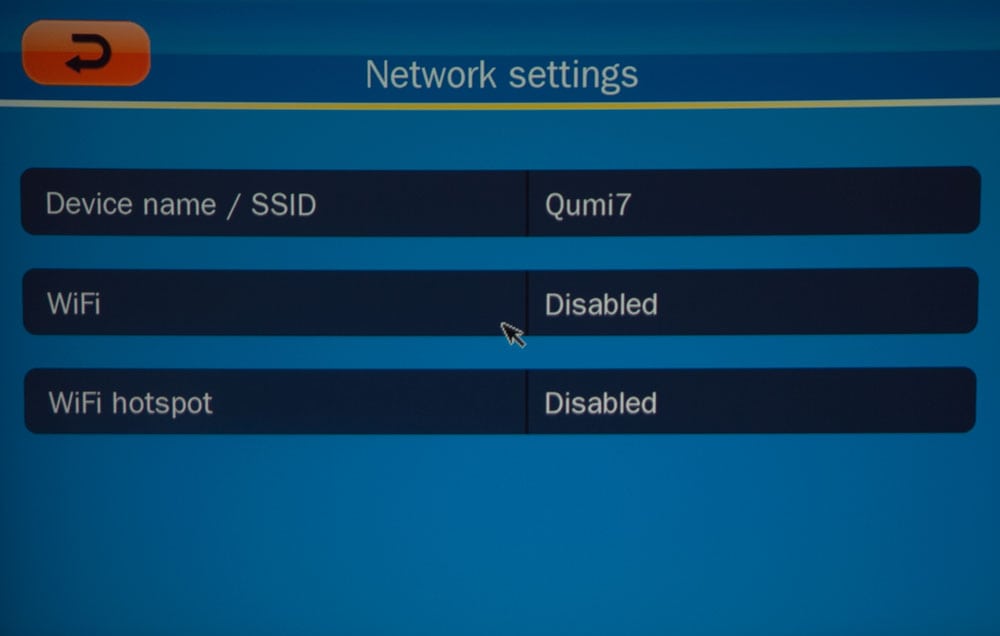

Wifi Settings

Menu would have been more fun if I had the Wifi dongle

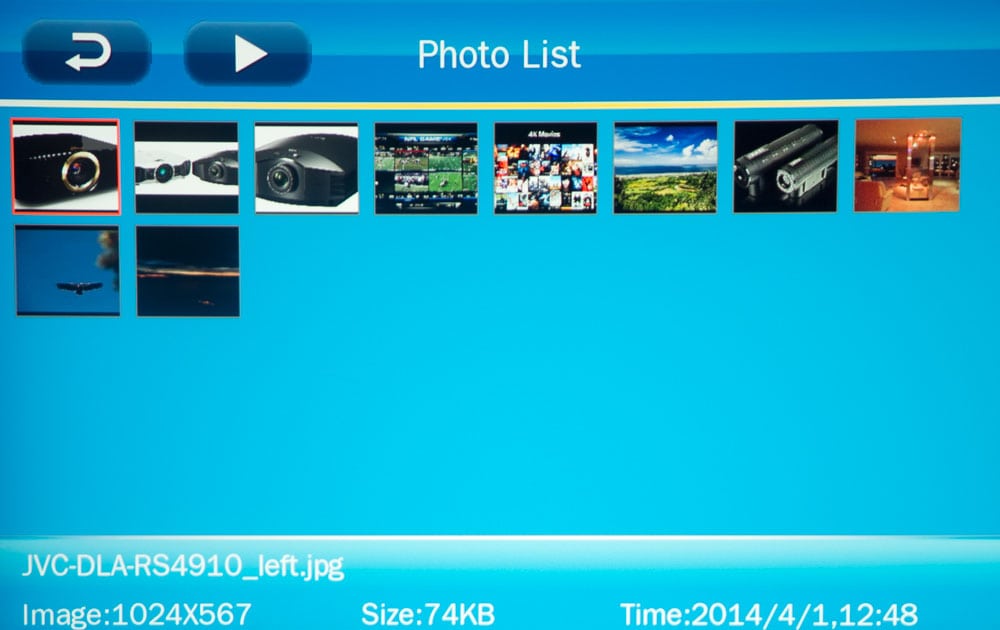

Photo Player

Showing thumbnails of the photos on the USB thumb drive I plugged in

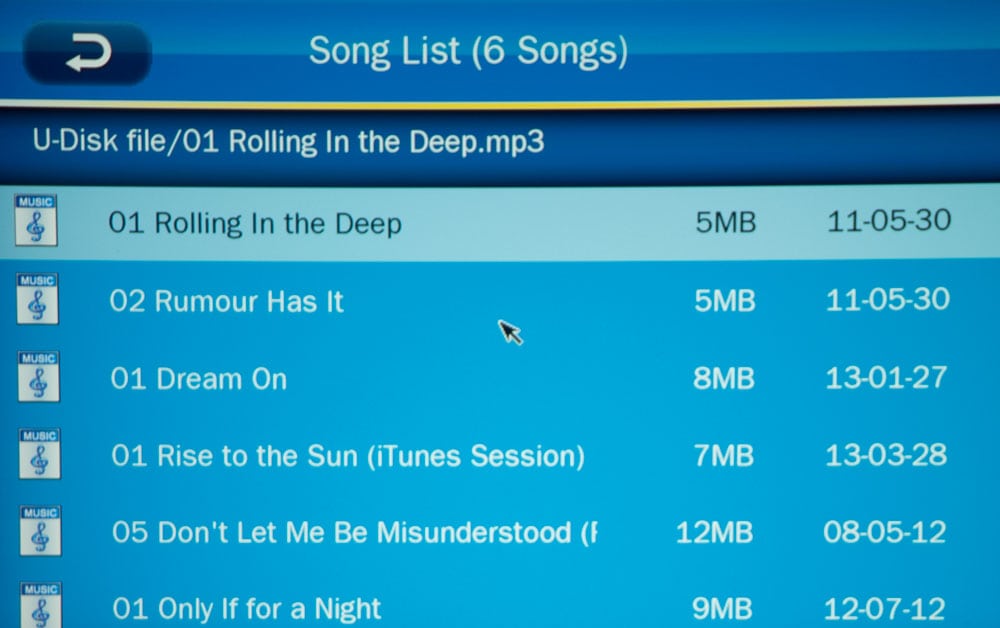

Music Menu

Shows songs I copied over onto the USB drive

Look, "fancy" graphics

You can watch your music as the display shows frequency volume

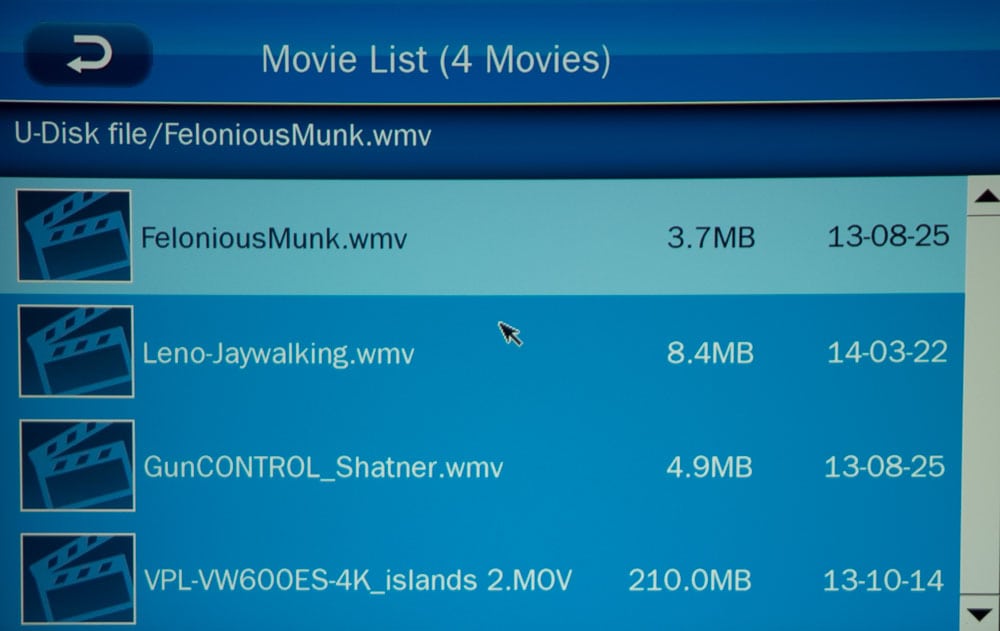

Movie Player

Supports .wmv, but does not support .mov - too bad.

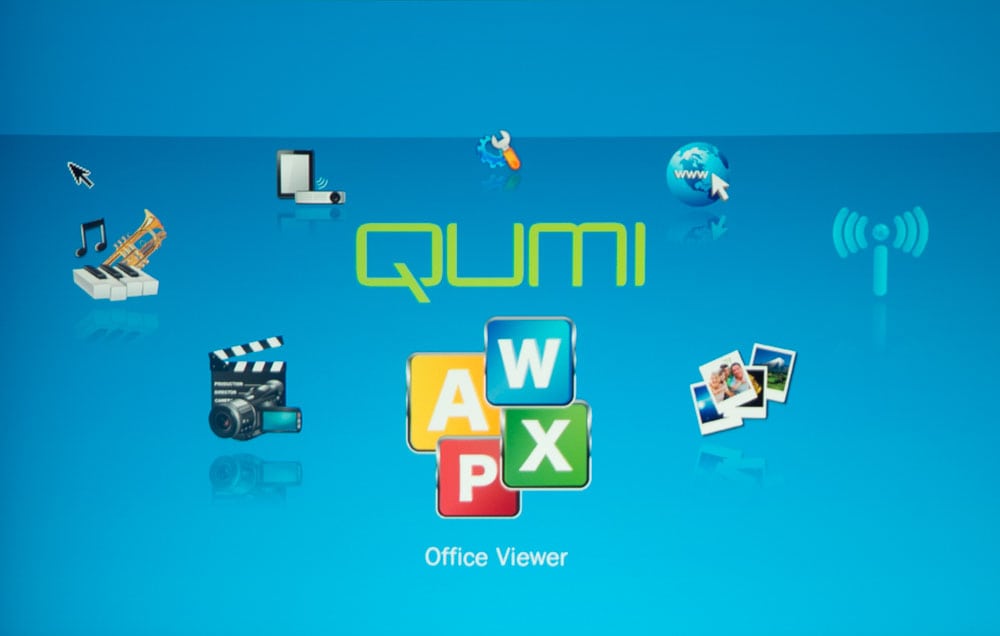

QUMI Q7 Microsoft Player menu

In addition to displaying txt files, movie files, pdfs, you can show Office documents

Microsoft Office Player

View Excel, Powerpoint, Word, files without a computer

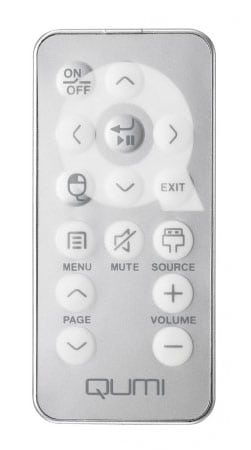

Qumi Q7 Remote Control

The Q7's remote control is of the "credit card" variety.  That means small.  Not too thick, and with buttons that just aren't a solid feeling as you get with "real" remote controls.  On the other hand who wants a huge remote control with a small, very lightweight projector.

The remote control for this Qumi projector allows for basic remote mouse functions, including navigating, (but only up/down/left/right, as there is no joystick or disc pad to allow you to move the cursor at an angle).

Range can be anything from pretty good to a bit iffy.   The IR sensor on the projector is in the back, right below the USB input and the two HDMI inputs, and very close to where the power cord plugs in.   For the most part, the remote worked out to 15+ feet, but for fun, I put cables into both HDMI, and a USB thumb drive in the USB.  Depending on where I was standing, relative to the cable clutter, the range from some angles dropped to 7-8 feet on average,  but if I moved a foot or two in some direction, I'd get a cleaner shot at the sensor, and the range would be back to 15 feet.

Let's look at the remote control for the Q7, and its functionality.

We'll start our tour at the top!

Power switch, top left.  Press once for on, twice to power down.  just below is the navigation area with the four arrow keys and the Enter button in the middle.  If you are doing some remote mousing the button that puts you in computer mode is on the left with a clever image of a computer mouse on it.  Opposite it, on the other side of the down arrow, is the Exit button which will take you out of the menus, no matter how far down you've drilled.

The Menu button is on the left on the next row.  When you are in the menus, pressing the Menu button always takes you back up one level.

The Mute is next, and on the right is the Source button, to bring up the list of sources.

Back to the left where there are a pair of buttons one above the other, for more "remote mousing":  Page Up and Page down, for PowerPoint among other applications.  Across are the volume up, and down.

And that folks is it. FYI, the remote runs on a single 2025 button battery, which should be easy to find.  There's no backlight, of course, you just don't find them on credit card style remote controls.  The remote's layout works well, although I'd rather they had switched the Menu with the Remote Mousing button.  That said, someone who uses remote mousing a lot, would prefer it where Vivitek put it.

Click Image to Enlarge

Qumi Q7 Attaches to Tripod

Nothing fancy going on here.   Just know that it might be convenient at some point to want to set up this projector on a tripod.  It has the usual screw thread hole on the bottom.   A tripod can be a very convenient solution if you are presenting in places that may not have a table convenient.
