A Comprehensive Guide to Building a Projector-Based Golf Simulator
Posted on August 6, 2024 by Phil Jones
Golf simulators have become increasingly popular among golf enthusiasts, offering a convenient and innovative way to practice and improve their game from the comfort of their homes. Whether you are a casual player looking to enjoy a few swings during your free time or a serious golfer aiming to refine your skills, golf simulators provide numerous benefits.
In this article, sponsored by Elite Screens, we provide a comprehensive guide on how to build a projector-based golf simulator, covering essential components such as the screen, projector, computer, and launch monitor. By the end of this article, you will have all the information you need to create your own high-quality golf simulator setup.
Benefits of Golf Simulators for Casual and Serious Golfers
Golf simulators offer convenience and accessibility that traditional golfing simply cannot match. For casual golfers, the ability to practice at any time without the need to travel to a course or driving range is a significant advantage. This convenience extends to serious or professional golfers as well, who can benefit from uninterrupted practice sessions regardless of weather conditions.
The year-round practice capability ensures that golfers can maintain their skills even during the off-season or inclement weather, making it a worthwhile investment for anyone passionate about the sport.
Another compelling benefit is the cost-effectiveness of owning an in-home golf simulator. Over time, the expenses associated with frequent visits to golf courses and driving ranges, including green fees and travel costs, can add up. A golf simulator, while requiring an initial investment, provides a long-term solution that can save money and offer unlimited practice opportunities.
One of the most notable advantages of golf simulators is their ability to provide detailed analytics and feedback. Advanced simulators can track various aspects of your swing, ball trajectory, and impact data, offering insights that are invaluable for improving your game.
This level of data analysis is beneficial for serious golfers who are focused on refining their skills, but it is also helpful for casual players who want to understand their performance better.
In addition to these practical benefits, golf simulators also offer significant entertainment value. Golf simulators provide a fun and engaging way to play golf with friends and family, making them a great addition to any home entertainment setup.
Why Projection is the Best Display Solution for Sports Simulation
A projector and screen setup can provide a much larger display than even the largest flat-panel TVs. This larger display size significantly enhances the immersion, so you feel as though you are actually on the course. The expansive view allows for better depth perception and a more accurate representation of golf courses.
For the size of the display you get, projectors are often more cost-effective than large flat-panel TVs. Setting up a projector with an appropriate impact screen (which can withstand the impact of golf balls) is usually less expensive than purchasing a high-end TV while providing a larger and more immersive display area.
In addition to massive sizes, golf simulators are built with various aspect ratios, including 16:9, 4:3, and even 1:1. A projection screen can easily support any shape.
Even if you could find a massive 8ft tall by 10ft wide flat panel display, you do not want to hit a golf ball at it. A significant concern with using a flat-panel TV for a golf simulator is the potential for damage from golf balls. Striking a flat-panel TV with a golf ball would almost certainly damage the screen, leading to costly repairs or replacements.
Protecting a flat panel TV from such impacts would be challenging and expensive, requiring additional barriers or protective coverings that could hinder the visual experience.
In contrast, impact screen materials like Elites Screens ImpactWhite are designed to absorb the energy of golf balls. They are rated to resist golf impact and withstand ball speeds up to 200 mph, ensuring both durability and safety during practice.
Notable Golf Simulator Components
A projector-based golf simulator has several key components. Understanding the importance of each component will help you make informed decisions and ensure that your setup is functional and enjoyable.
The main components include a screen, a projector, a launch monitor, and a computer. Each plays a crucial role in delivering a high-quality simulation experience, and selecting the right ones can make all the difference in your overall satisfaction.
Impact Screen
When building a projector-based golf simulator, the screen is a critical component that must withstand the impact of high-speed golf balls while delivering a clear and vibrant image.
Impact screens, specifically designed for golf simulators, are made from heavy-duty materials that can absorb the force of golf shots without tearing or wearing out quickly. In addition to golf, a good impact screen can be used for other types of sports simulation, such as kicking a soccer ball or throwing a baseball at the screen.
Durability is essential since the screen needs to handle continuous impacts without losing its integrity. High-quality impact screens are made from tightly woven fabrics that offer both strength and flexibility. These screens are designed to last, ensuring you get the most out of your investment.
The screen size is also important; it should be large enough to create an immersive experience but fit within the space you have available. A properly sized screen will enhance your practice sessions, making them more enjoyable and realistic.
Another critical aspect is image quality. The screen should provide a clear and bright image, ensuring the graphics are sharp and easy to see. This clarity is crucial for accurately simulating the golf course environment and making precise shots.
In addition to the sports simulation, a quality screen with a good projector can also be used to watch video content such as TV shows, movies, and sporting events. You can even play computer games on a connected PC, PlayStation, or Xbox. The ability to use the space for a whole host of entertainment options along with sports simulation increases its value,
Elite Screens’ ImpactWhite Sports Simulation screens are designed to provide a high-quality image while withstanding golf ball impacts. Four different types of ImpactWhite screen materials are available, which can be pre-cut for use in custom solutions. They can withstand impacts from golf balls traveling up to 200 mph.
Two notable screens are the ImpactWhite 1145 and ImpactWhite® 360 which are ISF (Image Science Foundation) certified for accurate color reproduction.
The ImpactWhite 1145 material is a multi-layer warp-knitted fabric designed for maximum strength. Elite Screens says this screen is tough enough to withstand up to 1,062 continuous golf ball strikes on the same spot at 160 mph.
The ImpactWhite® 360 is a single-layer, tightly woven impact/projector screen with a smooth surface and minimal color shift, ensuring an exceptional cinema-quality image.
These ImpactWhite 1145 and ImpactWhite® 360 screens are available in 10’x8’, 10’x10’, 10’x13’, and 10’x20’ sizes. They are also equipped with metal grommets so they can be easily attached to a framing system.
Some screens come with mounting kits that simplify installation, while others may require a custom frame or additional hardware. Ensuring the screen is securely mounted and properly tensioned will help maintain a flat and smooth surface for optimal projection and gameplay.
Elite Screens GolFSim Bay and GolfSime Portable Series screens simplify permanent and portable setup.
To further simplify installation, Elite Screens offers the GolfSim Bay Series, which offers a complete setup for golf simulation, including a robust impact screen and a sturdy frame. This series is designed to provide a professional-grade simulation experience in a professional or home application.
For those who need flexibility, the GolfSim Portable Series offers a convenient solution. These portable setups are easy to install and move, making them ideal for users who require a versatile and adaptable golf simulation setup.
Elite Screen provided me with a GolfSim Portable system, which includes an 8-foot high by 10-foot wide ImpactWhite® 350 screen and retails for $1468.50. I am working on a full review of this screen, but so far, I am impressed with its simple setup and build quality.
The projector is another vital component of your golf simulator, as it determines the quality of the image displayed on the screen. When choosing a projector, brightness, and resolution are key factors to consider. A projector with high lumens (brightness) and high resolution (clarity) will provide a clear and vibrant image.
For golf simulators, a projector with at least 3000 lumens and a resolution of 1080p or higher is recommended to ensure the display is bright and detailed, even in well-lit environments. While home entertainment projectors can be utilized, business projectors are often chosen because they offer high brightness for less.
Some projectors now include dedicated preset picture modes for golf simulation which adjust contrast and color to make greens and skies appear more vibrant, further enhancing the visual experience.

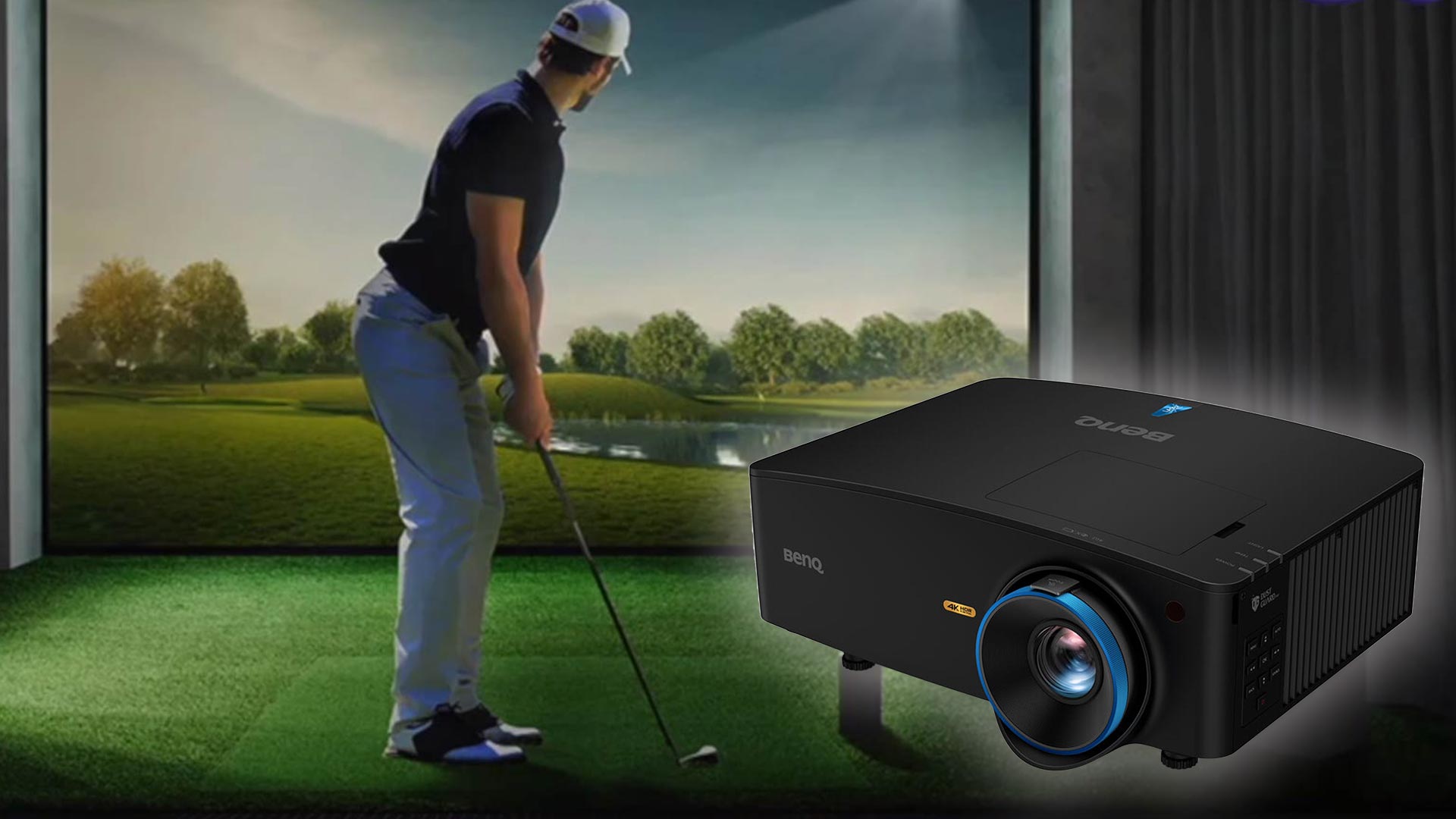

Projectors like the BenQ LK936ST are designed for both golf simulation and home entertainment
Short-throw projectors are particularly well-suited for golf simulators, especially in smaller spaces. They can project a large image from a short distance, minimizing shadows and providing a clearer view of the simulation. Standard throw projectors, on the other hand, require more distance and space, which might not be feasible in all setups.
While an Ultra Short Throw projector can be utilized, it must be positioned very close to the screen, making it more likely to be damaged by the golf ball's bounce back. While you can purchase a protective cover, it adds cost to the system, and it still may not fully protect the projector.
In a permanent installation, the projector is normally mounted on the ceiling. However, in rooms with lower ceilings or in portable installations, the projector can be placed on a cart to the side of the player.
Connectivity options are also crucial when selecting a projector. Ensure the projector has the necessary ports for connecting to your computer and other components. HDMI and VGA ports are common, but wireless connectivity options can offer more flexibility and reduce cable clutter.
Choosing a projector with these features will enhance your overall setup and ensure smooth operation. Additionally, consider the projector's compatibility with your other equipment to avoid any potential issues during installation.
Due to the growing popularity of Golf/Sports Simulation, Projector Reviews will evaluate more projectors targeted at this demographic. Since this is a Golf Simulation overview article, we don’t have the space to cover projectors in massive detail. Stay tuned for an upcoming article dedicated to how to choose the best golf projector for your application
Launch Monitor
The SKYTRAK is a popular portable launch monitor
The launch monitor is a crucial component that tracks your shots and provides data for the simulation software. It measures parameters such as ball speed, launch angle, and spin rate, which are essential for creating an accurate and realistic simulation. You can take a portable launch monitor to a real golf course to measure your performance.
Launch Monitors can be permanently mounted on the ceiling or portable models placed on the floor beside the player. Depending on the bundled software, sensor quality, and level of accuracy, the price of a launch monitor can range from a few hundred dollars to several thousand.
There are two main types of launch monitors: photometric (camera-based) and radar-based. Each type has advantages, so choosing one depends on your specific needs and preferences.
Photometric monitors use high-speed cameras to capture detailed images of the ball and club at impact. They provide highly accurate data on ball flight and spin, making them ideal for serious golfers focused on improving their game.
An example of a high-quality photometric launch monitor is the SKYTRAK ($999), which is compact, has a user-friendly interface, and integrates seamlessly with various golf simulator software. The unit’s high-speed cameras track the ball's trajectory immediately after impact, providing accurate data on ball speed, launch angle, and spin rate.
Radar-based monitors use radar to track the ball’s flight, capturing data on ball speed, launch angle, and carry distance. They are excellent for providing a comprehensive overview of your shots and are often more portable than photometric monitors.
An example of a radar-based launch monitor is the Garmin Approach R10, which retails for just $599. This compact and affordable launch monitor utilizes radar technology to track ball flight and measure things like ball speed, clubhead speed, launch angle, and spin rate, The R10 also includes features like automatic shot detection and a virtual driving range.
The Rapsodo MLM2Pro ($699 SRP) is a popular portable launch monitor that utilizes a combination of dual high-speed cameras and Doppler radar technology to track both club and ball data.
For enhanced accuracy, you could step to the FlightScope Mevo ($1945). This portable launch monitor also combines camera-based tracking with Doppler radar technology for enhanced accuracy.
When selecting a launch monitor, look for features such as high accuracy and precision, detailed data on various aspects of your swing, and easy integration with simulation software. These features will ensure you get the most out of your simulator, providing valuable feedback and enhancing your overall experience.
A good launch monitor will not only track your shots accurately but also offer insights that can help you improve your technique and performance over time.
Computer
The computer plays a vital role in a golf simulator system. It runs the simulation software, processes data from the launch monitor, and provides the video signal to the projector.
Your computer needs sufficient processing power, memory, and storage to ensure smooth and responsive performance. A powerful CPU and GPU are essential for running simulation software effectively. An Intel i5 processor or higher, combined with an NVIDIA GTX 1060 graphics card or better, will provide the necessary performance. These components ensure the software runs smoothly, with high frame rates and detailed graphics.
In addition to a powerful CPU and GPU, your computer should have at least 8GB of RAM and a solid-state drive (SSD) for fast data processing and storage. More RAM and a larger SSD can further enhance performance, reducing load times and improving the overall user experience.
By investing in a high-performance computer, you can ensure that your golf simulator operates seamlessly, providing a realistic and enjoyable practice environment.
Connectivity is another important aspect to consider. Your computer should have multiple USB and HDMI ports to connect all the necessary peripherals, including the launch monitor, projector, and other accessories. Ensuring you have enough ports and the right types of connections will help you set up and use your simulator without any issues.
Additionally, consider the computer's compatibility with your other equipment and the simulation software to avoid potential problems during installation and use. For example, make sure your Golf Sim software and launch monitor are compatible with iOS before purchasing a MacBook.
Assembling Your Golf Simulator
Once you have all the necessary components, you can assemble your golf simulator. Follow these steps to ensure a smooth and successful setup:
First, set up the impact screen in your designated space, ensuring it is securely mounted and tensioned for a flat and smooth surface. Position the screen at a height and distance that provides a realistic view of the golf course while allowing enough room for your swings.
Next, position the projector at the appropriate distance from the screen, adjusting the settings to project a clear and bright image. Make sure the projector is aligned correctly to avoid any distortion or misalignment in the display.
Connect your computer to the projector and launch monitor, ensuring all cables are securely connected and the devices are powered on. Use high-quality cables to ensure reliable connections and prevent any signal loss.
Calibrate the launch monitor according to the manufacturer’s instructions, ensuring it accurately tracks your shots and provides reliable data. Calibration may involve setting up sensors, adjusting settings, and performing test shots to fine-tune the accuracy.
Finally, install the simulation software on your computer and configure it to work with your launch monitor and projector. Follow any additional setup instructions provided by the software to ensure all components are integrated correctly. This may include setting up user profiles, selecting golf courses, and adjusting graphics settings for optimal performance.
Once everything is set up, test your golf simulator by playing a few practice rounds and making any necessary adjustments to improve the experience.
Conclusion
A projector-based golf simulator offers a convenient and cost-effective way to practice and enjoy golf at home. By carefully selecting the right components and following the setup instructions, you can create a high-quality golf simulation experience that benefits casual and serious golfers.
Before I began this project, building a Golf Simulation seemed like a complex undertaking that should only be attempted by a professional. However, companies like Elite Screens work hard to provide high-quality, simple-to-install solutions for those who want to install a permanent or portable Golf simulator system. Utilizing an Elite Screens GolfSim Portable, a cart-mounted projector, my laptop, and an inexpensive floor-mounted launch monitor, I could set up a golf simulator in about 90 minutes.
Yes, there are different levels of golf simulators, and a higher-end, professionally installed system will deliver a better experience. However, building your own golf simulator is a rewarding project, whether you are looking to improve your game or simply have fun.
Start today and enjoy the countless benefits of having a golf simulator in your home. From enhancing your skills to providing year-round practice opportunities, a well-built golf simulator is a valuable addition to any golfer's setup.
