BRIGHTLINK PRO 1430Wi PROJECTOR REVIEW – Interactive Features:  Installation, Setup, Calibration and Use

Interactive Whiteboard

Interactive Whiteboard

Installation

The BrightLink Pro 1430Wi will normally be wall mounted in the inverted position, as shown in the photo below, for use of the interactive features.   The Touch Unit (sensor module), not shown, would normally be mounted just below the projector.

Brighlink Pro 1430wi wall mounted

The most common installation for this projector would be use the optional Epson wall mount (shown in the above photo) to install the projector just a few inches above a whiteboard/screen.

Another application will call for mounting the projector vertically at the back of a (large enought) white table to created an interactive table top, as shown in the photo below.

Interactive Table

Interactive Table

Also as mentioned earlier in this review, the projection surface needs to be rigid, such as a whiteboard or table top, and not a flexible fabric projection screen.  This is necessary since the interactive pens have a pressure sensitive tip that must be pressed against a hard surface for drawing or selecting menu items.  Even with finger touch, a lot of touching is sure to soil the screen and potentially cause damage over time. The Touch Unit is easy to install if you are using a magnetic whiteboard, as the touch unit has mounting magnets on its back side – just stick it at the top-center of the whiteboard about an inch above the top of the image.  Lacking a magnetic surface for mounting the Touch Unit, it will need to be attached with screws.

[sam_pro id=1_75 codes="true"]

Setup and Calibration

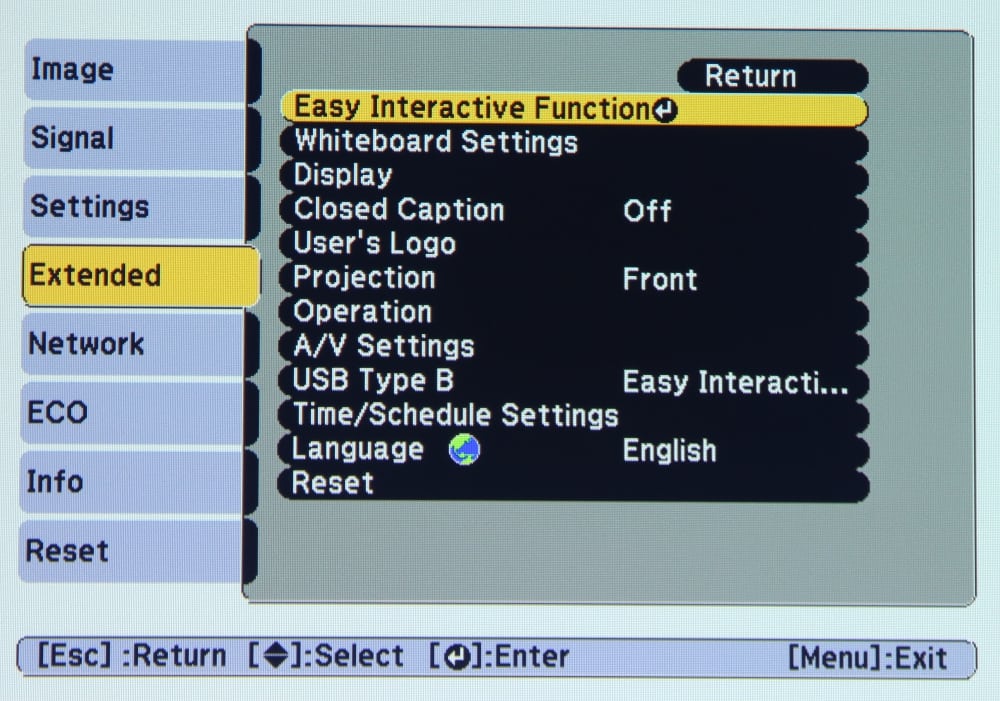

The “Extended” settings menu (see the 1st photo in the gallery) provides access to several functions for setting up the 1430Wi, including the “Easy Interactive Function”.  Selecting that function brings up the Easy Interactive Menu, (2nd photo in the above gallery) for setting up the light pen and finger touch interactive features. The first step to setting up the interactive functions is to perform the auto calibration, which does a initial calibration for the interactive pens using a series of calibration patterns, the first of which is shown in the 3rd gallery photo.   Manual calibration also need to be performed as described below.  The finger touch setup requires manual calibration for the touch position.

Since the interactive setup is essentially the same for the Brightlink Pro 1430wi as it was for the Brightlink 595wi that I previously reviewed, the following information is taken directly from the review of that model.

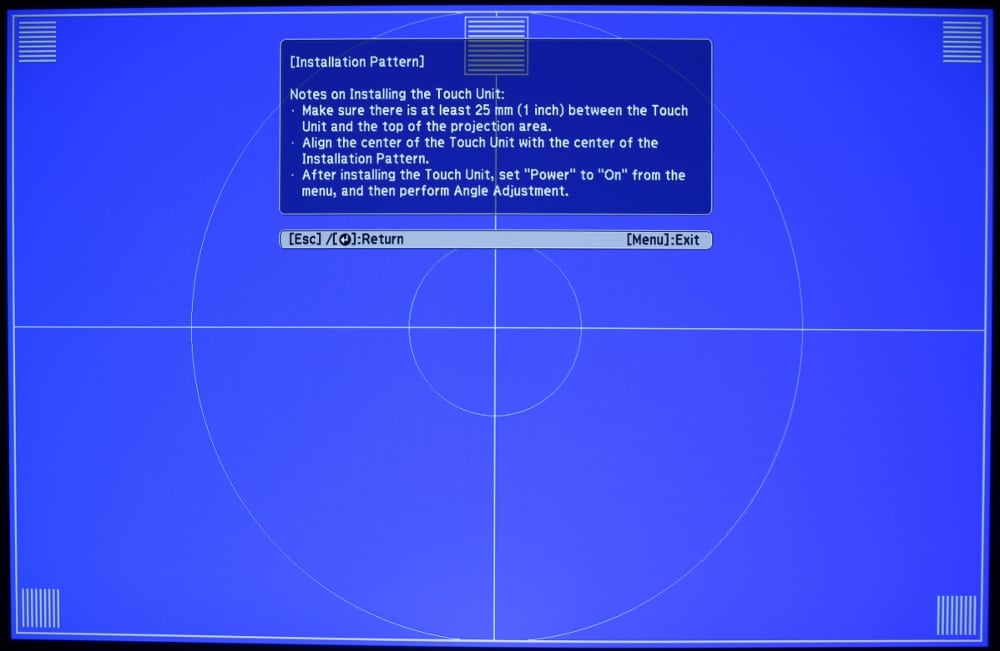

Next the manual calibration needs to be performed to get a more precise calibration for the pens.  A series of screens are displayed with each having a single spot (target location) where the pen must be touched against. Once completing the pen calibration and the next step it to calibrate the finger touch function.   The Touch Unit must be turned on via the projector’s touch setup menu. The Touch Unit, when mounted just above the top center of the screen, should be horizontally centered with the projected image using the following test screen.

Epson 595Wi-Touch Calibrate step-0

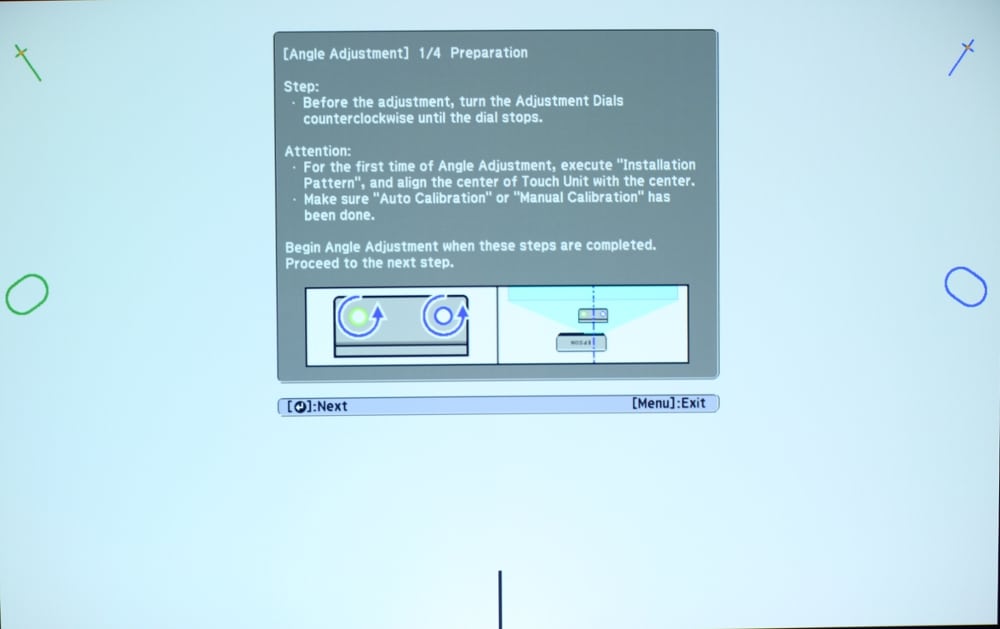

The next screen shot shows the first screen that is used to adjust/calibrate the Touch Unit.

Epson 595Wi-Touch Calibrate Menu-1

The Touch Unit comes with a pair of “Markers”, what are small plastic calibration aids (shown in the photo below) that must be affixed to the whiteboard/screen at the two locations marked on the calibration screen shown above.

Epson 595Wi-Touch Calibrate L brackets

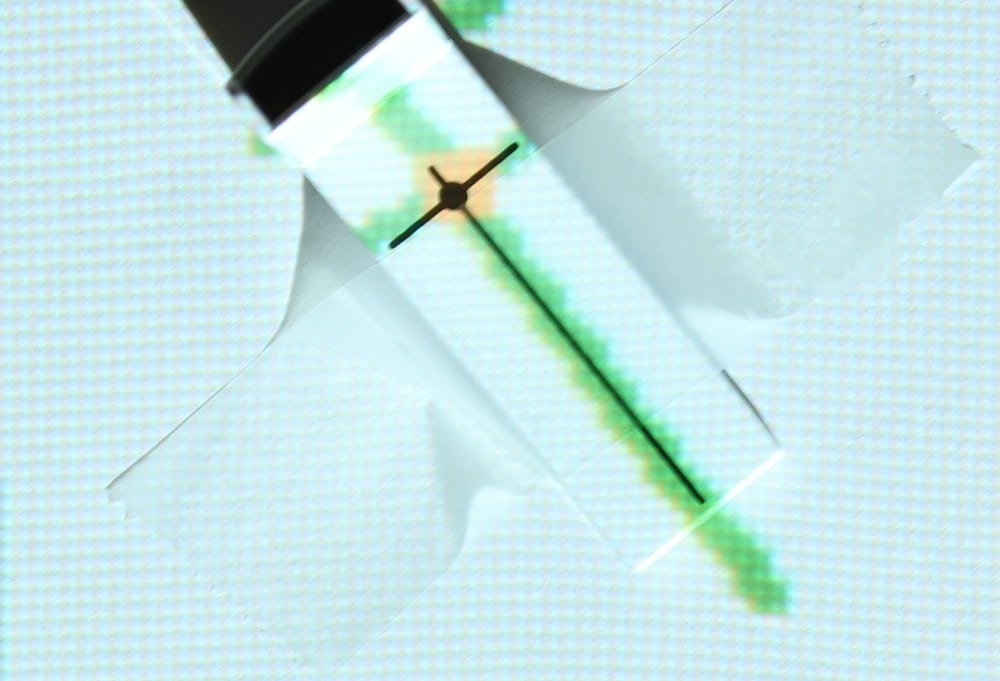

These markers have magnets on the back side so if a magnetic whiteboard is being used as the projection surface they can simply be placed at the correct locations.  However, if the projection surface is not magnetic then they can be held in place with tape (that’s what I did for my test setup).  The projected cross lines are to be aligned with the cross lines printed on the marker, as shown in the photo below.

Epson 595Wi-Touch Calibrate step-1

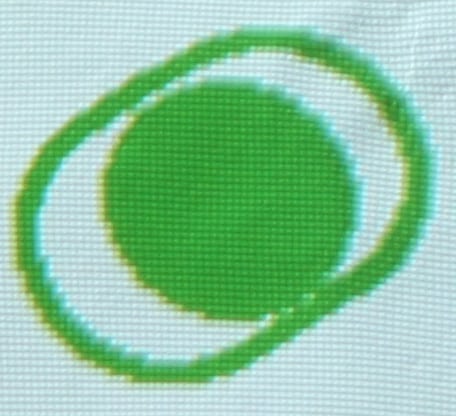

Next each of the two knobs on the Touch Unit is turned until the displayed circle moves into the oval, as shown below.  The left knob adjusts for the calibration position on the left side of the screen and the knob on the right adjust for the position on the right side.

Epson 595Wi-Touch Calibrate step-2

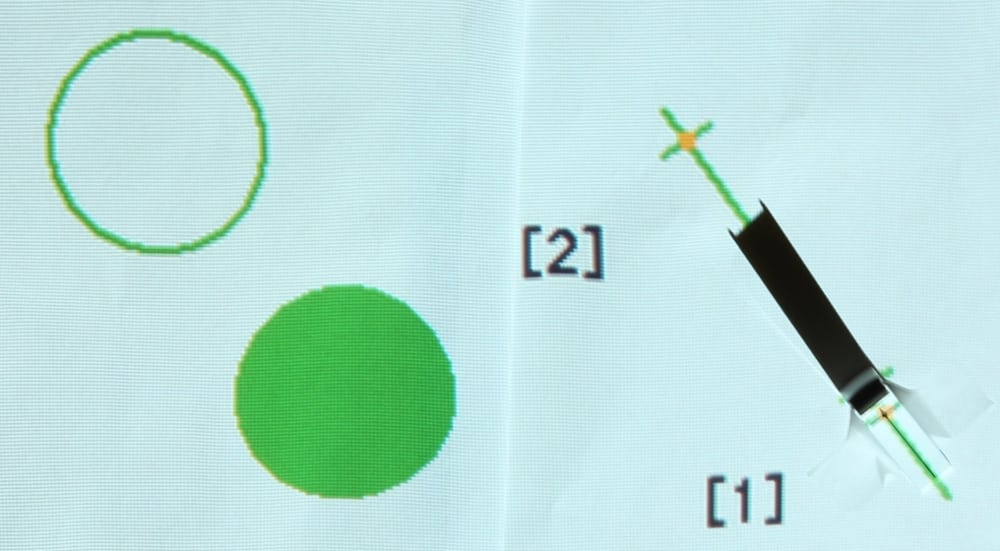

Once this is accomplished for the two calibration points the next calibration screen has four more calibration points with two closely spaced points labeled #1 and #2 on each side of the projected image.  A marker is placed first at the point labeled #1 and the adjacent circle should become filled in (as shown in the photo below).  Then the marked is moved to the point labeled #2 and the circle adjacent to that point should become solid.  No adjustment of the touch unit is necessary in this step as it is just a check to verify that the previous step was done correctly.

Epson 595Wi-Touch Calibrate step-3

The final step uses the following test pattern.

Epson 595Wi-Touch Calibrate step-4

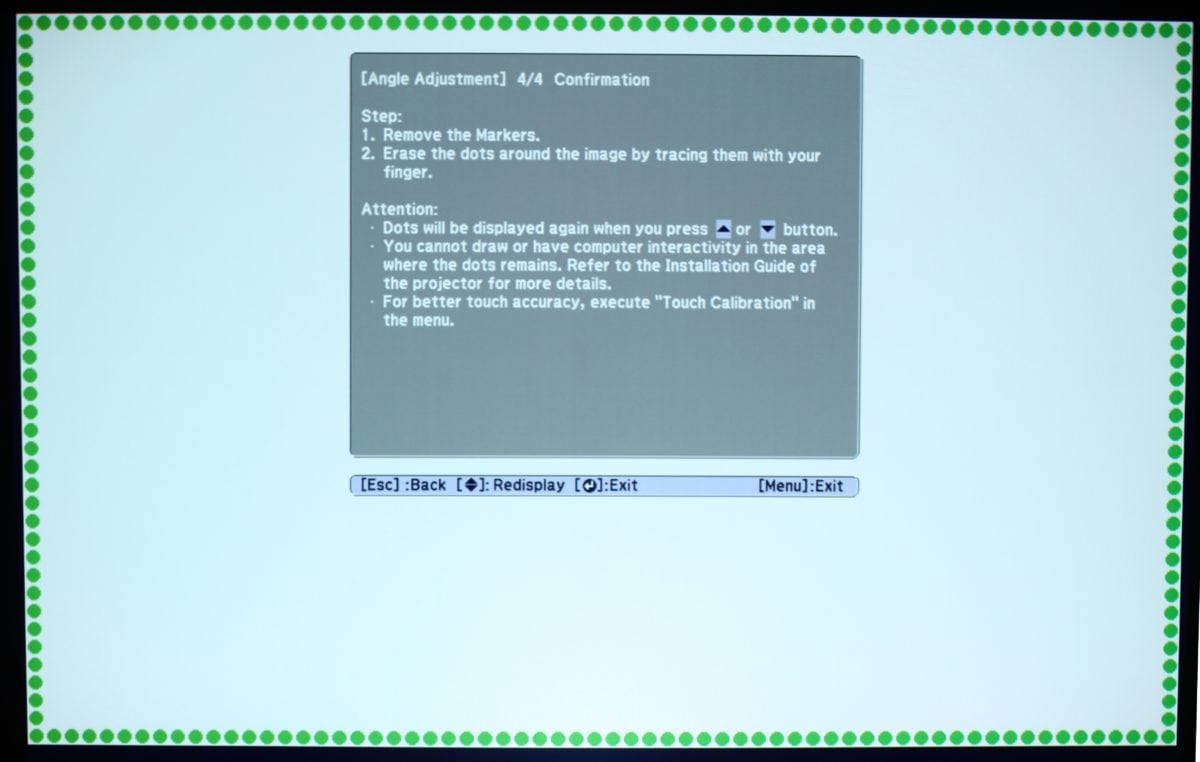

Using the above calibration screen you move a finger along the green dotted line surrounding the outside edge of the image and the dots are erased as you touch their position. This completes the calibration of the touch interactive function and the 595Wi is then ready to use in fully interactive mode.

Using the interactive Features

I did some testing of the basic interactive features of the 1430Wi. First  I used one of the light pens (see photo below) to verified that actual vs. detected point that I touch the tip of the pen to the screen was offset less than 1/2 at any of the several locations across the screen surface that I tested.

Epson 1430Wi - Interactive Pens

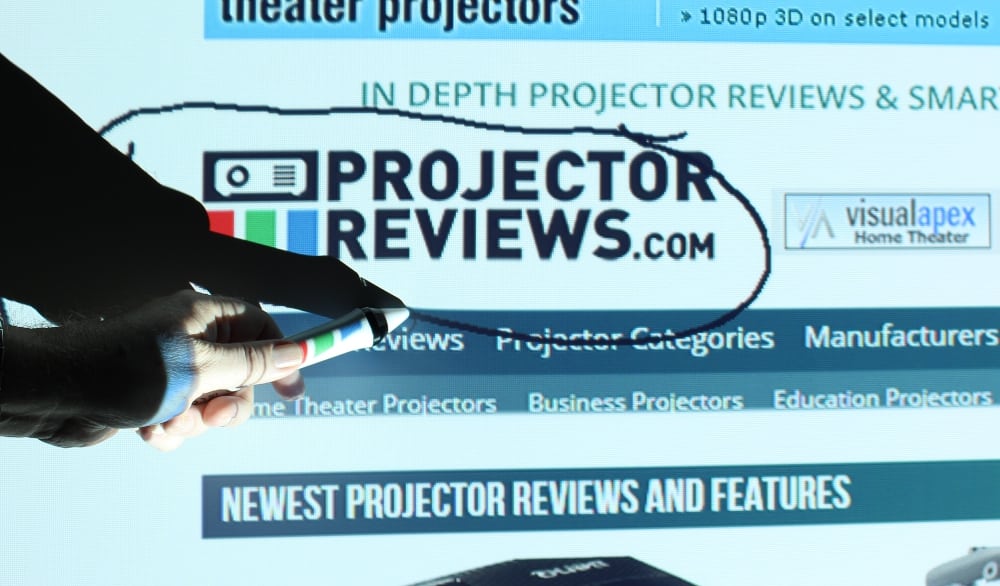

I used the pen for drawing (see the following photo) and also for selecting items from on-screen menus.  I found the pen worked reliably for both of these functions.  A single tap of the pen on the whiteboard acts as a left mouse button click, two quick taps act as a double click, the button on the side of the pen acts as a right mouse click, and you can also tap and drag objects.

Epson 595Wi-Pen drawing

Using the Finger Touch Function

I tested the using finger touch for both drawing and for selecting menu items.  The projector has a built-in function for using the finger touch inputs for annotating projected images.  I found the accuracy for the finger touch position to be similar to that of the interactive pens, which is to say there was excellent registration between the my actual finger position and where the projector placed my inputs on the projected image.



The Bottom Line on the 1430Wi's Interactive Features

The bottom line is the Epson BrightLink Pro 1430Wi does a great job at supporting remote, pen and finger touch interactive capabilities for the classroom or boardroom.  Great job Epson!
