Epson Pro Cinema G6900 WU Projector: Advanced Calibration Information

Posted on March 2, 2014 by
This is the advanced calibration information for the Epson Pro Cinema G6900 WU projector, available only to our paid subscribers.

Color Management Settings (CMS)

Color Management Settings
Red Green Blue Cyan Magenta Yellow
Hue 0 43 29 0 -9 11
Saturation 0 -50 -64 -64 0 -45
Brightness -9 30 24 31 -17 31

Mike's Notes

The color gamut is not bad by default.  This is a good thing because the CMS is inconsistent in its ability to improve the color gamut.  With the primaries, the Saturation control had almost no effect.  As a result, only small improvements could be made, particularly with Red.  The secondary colors fared much better and I was able to really minimize the error.  That being said, the calibrated result does not look much different from the default (switching back and forth between Theatre and sRGB, for example).  Skin tones look pretty good in either mode.

Pretty good picture overall while still putting out almost 3000 lumens calibrated.

Calibration Charts (Before and After)

Click to enlarge these charts, pre- and post-calibration.

Epson Pro Cinema G6900WU Calibration Charts

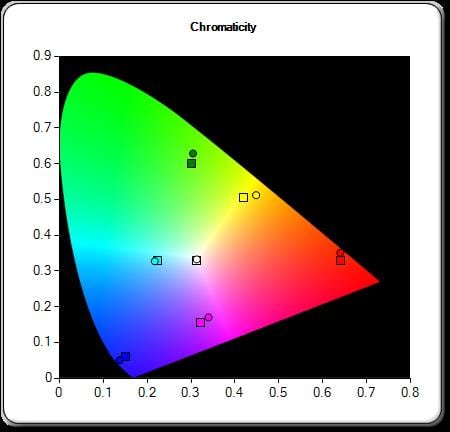

Epson Pro Cinema G6900WU CIE Chart Pre-Calibration

Epson Pro Cinema G6900WU CIE Chart Post-Calibration (CMS)

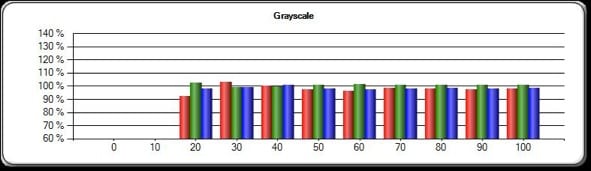

Epson Pro Cinema G6900WU CIE Chart Grayscale

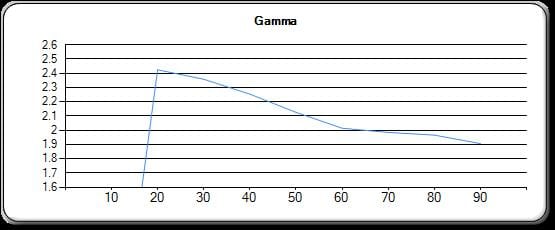

Epson Pro Cinema G6900WU Gamma Chart
