Epson Home Cinema 5050UB Projector Review – Hardware 2

Posted on May 12, 2019 by Art Feierman

Epson Home Cinema 5050UB Projector Review – Hardware 2:  Control Panel, Remote Control, The Menus

Control Panel

control panel
The Epson Pro/Home 50UB series and 4010/4050 have the same control panel (The 6050UB and 4050 are in black. Easier to see the white.

The Epson Home Cinema 5050UB offers a somewhat basic, yet fully functional, control panel.  It is expected that the control panels on home theater projectors will be simple and small as they are rarely used, seeing as most of these projectors will be ceiling mounted, and all have a remote – Epson having a particularly good remote (see below).  This projector hides its control panel beneath a sliding door on the projector’s left side – save for two larger buttons.  The two larger buttons are, of course, the Power button and the Source button.

The concealed control panel offers a Menu button, a directional keypad with an Enter button in the center.  There is a Lens button in the bottom left corner, which cycles through the adjustment options, and an Escape button in the bottom right corner.

Home Cinema 5050UB Remote Control

The HC5050UB offers a highly functional, backlit remote control.  There are several distinct groupings on the remote, and we’ll start with the first, at the top of the remote and move from left to right.  First, we have a larger On button, with a smaller Standby button next to it.  In the top-right corner we have a greenish button to turn on the remote’s backlight (without having to hit another button first, potentially change settings.)  The next row consist of the Home button, and a Blank button which serves the function of temporarily turning off video projection.

Epson remote control photo

The next section consists of Source buttons laid out in two rows.  They are HDMI1, HDMI2 and P-in-P in the first row, and PC and LAN in the second row.

The next section is made up of video playback control buttons, for control over playback and other features of connected devices that support the HDMI CEC standard.  The first row has Rewind, Play, and Fast-Forward.  The second row, Chapter Back, Pause, and Next Chapter.  The next row has a button for Link Memory, Stop and Audio Mute.  The last row of this section consists of HDMI Link, Volume Down and Volume Up.

The next section consists of three buttons in a single row; they are Lens, Color Mode and Image Enhancement.  Below that, we find a typical directional keypad with Enter in the center.  Just below the keypad we find a Default button, Menu button and Escape button.

The final section is made up of nine buttons over three rows.  First we have memory, Lens1 and Lens2 – these two buttons adjust the lens to a saved configuration for viewing different content, as we discussed in the Special Features and previous Hardware page.  The second row start with Frame Interpolation, followed by RGBCMY and Pattern.  The final row is User, 3D Format and Aspect Ratio.

The Menus

The HC5050UB utilizes the same menu system found on all Epson Home Cinema projectors.  Below is a list of menus and sub-menus ae available on the HC5050UB.

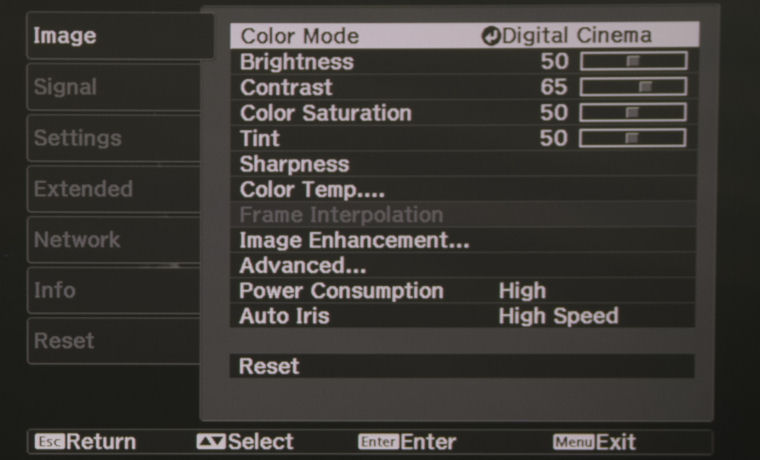

Image Menu: Color Mode, Brightness, Contrast, Color Saturation, Tint, Sharpness, Color Temp…., Frame Interpolation, Image Enhancement…, Advanced…, Power Consumption, Auto Iris, Reset

Image Color Temperature Sub-Menu: Color Temp, Skin Tone, Customized

Image Enhancement Sub-Menu: 4K Enhancement, Image Preset Mode, Noise Reduction, MPEG Noise Reduction, Super-resolution, Detail Enhancement

Image Advanced Sub-Menu: Gamma, RGBCMY, Deinterlacing, EPSON Super White

Signal Menu: 3D Setup…, Aspect, Overscan, Blanking, Advanced…, Reset

Signal 3D Setup Sub-Menu: 3D Display, 3D Format, 2D-to-3D Conversion, 3D Depth, Diagonal Screen Size, 3D Brightness, Inverse 3D Glasses, 3D Viewing Notice

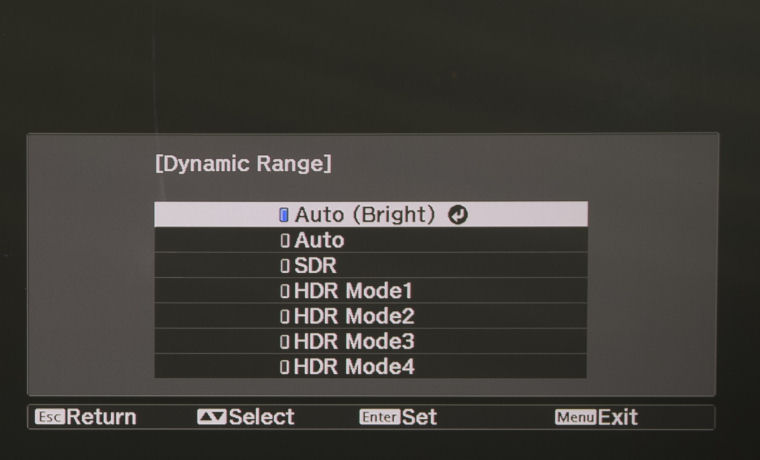

Signal Advanced Sub-Menu: HDMI Video Range, Color Space, Dynamic Range, Image Processing

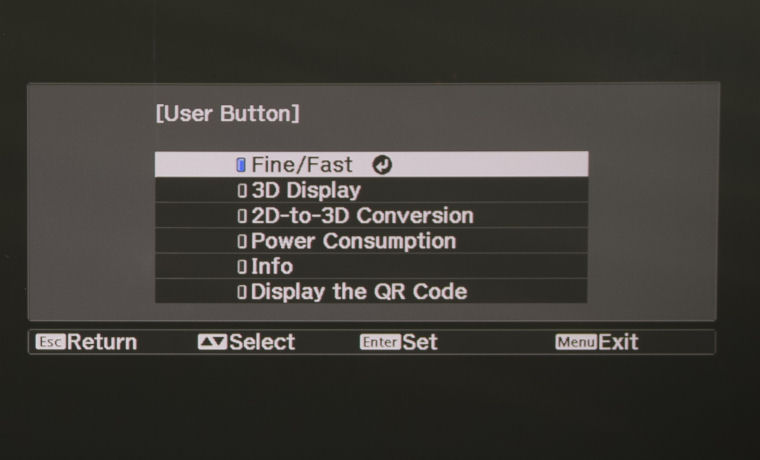

Settings Menu: Keystone, Picture in Picture, HDMI Link…, Lock Setting…, User Button, Memory…, Reset

Settings HDMI Link Sub-Menu: Device Connections, HDMI Link, Power On Link, Power Off Link, Link Buffer

Settings Lock Setting Sub-Menu: Lens Lock, Child Lock, Control Panel Lock

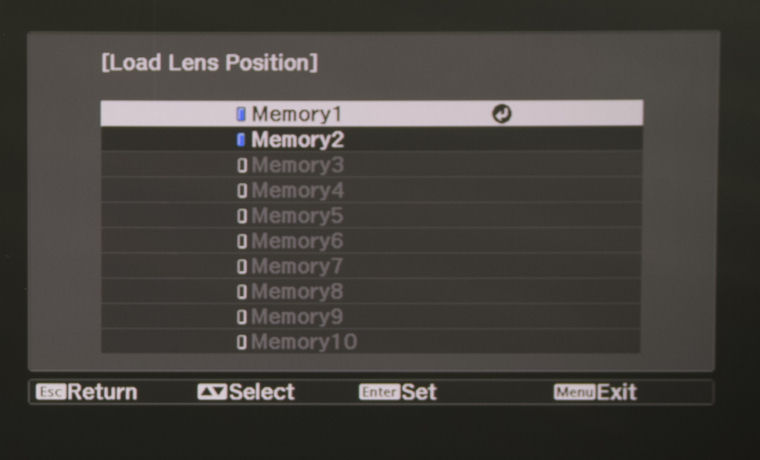

Settings Memory Sub-Menu: Load Memory, Save Memory, Erase memory, Rename Memory, Load Lens Position, Save Lens Position, Erase Lens Position, Rename Lens Position

Extended Menu: Home Screen…, Display…, Projection, Operation…, Standby Mode, Language, Reset

Extended Home Screen Sub-Menu: Home Screen Auto Disp., Custom Function 1, Custom Function 2.

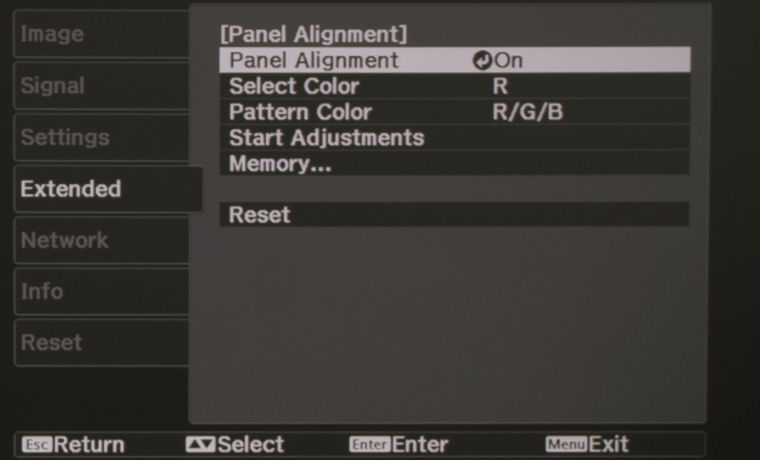

Extended Display Sub-Menu: Menu Position, Messages, Display Background, Startup Screen, Standby Confirmation, Panel Alignment, Color Uniformity

Extended Operation Sub-Menu: Direct Power On, Sleep Mode, Sleep Mode Timer, Illumination, Trigger Out, High Altitude Mode

Network Menu: Wireless LAN Power, Net. Info. – Wireless LAN, Net. Info. – Wired LAN, Display the QR Code, Network Configuration

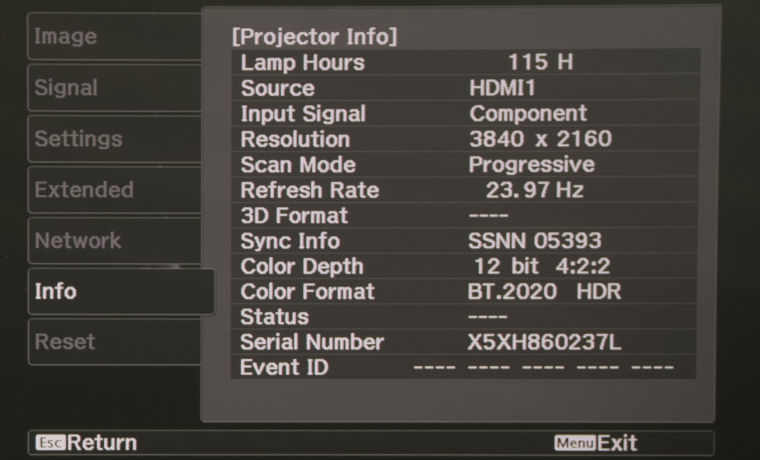

Info Menu: Lamp Hours, Source, Input Signal, Resolution, Scan Mode, Refresh Rate, 3D Format, Sync Info, Color Depth, Color Format, Status, Serial Number, Event ID

Reset Menu: Reset Lamp Hours, Reset Memory, Reset Lens Position, Reset All Config
