Sony VPL-HW45ES Projector – Advanced Calibration Information

Posted on August 27, 2016 By Lisa Feierman

This is the advanced calibration information for the Sony VPL-HW45ES projector, available only to our paid subscribers.

Reference Mode Custom Color Space w/BT.709 starting point

Red Cyan-Red (saturation) = 0

Magenta-Green (tint) = 0

Green Cyan-Red (tint) = -1

Magenta-Green (saturation) = 0

Blue Cyan-Red (tint) = 1

Magenta-Green (saturation) = 8

Note: CMS controls are limited, not full. They lack control of luminance and there are no secondary colors, just RGB. They are also global to BT.709

Bright Cinema Mode Custom Color Space w/BT.709 starting point

Red Cyan-Red (saturation) = 0

Magenta-Green (tint) = 0

Green Cyan-Red (tint) = -1

Magenta-Green (saturation) = 0

Blue Cyan-Red (tint) = 1

Magenta-Green (saturation) = 8

Reference Mode Post-Calibration

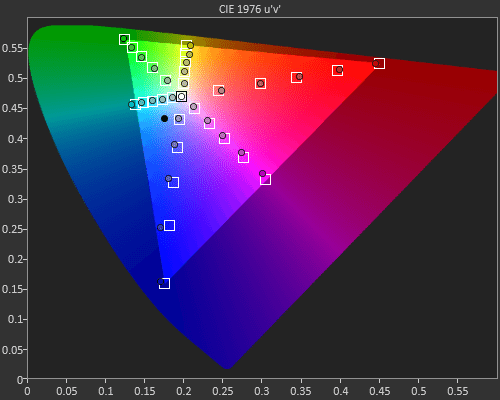

Sony VPL-HW45ES Reference Mode Post-Calibration CIE 1976 Saturation Sweeps (target REC 709)
Sony VPL-HW45ES Reference Mode Post-Calibration RGB Balance / Grayscale Tracking (target D65)
Sony VPL-HW45ES Reference Mode Post-Calibration DeltaE 2000 (target below error of 3)
Sony VPL-HW45ES Reference Mode Post-Calibration Gamma Log 2.20 Average Gamma (target 2.20)

Bright Cinema Mode Post-Calibration

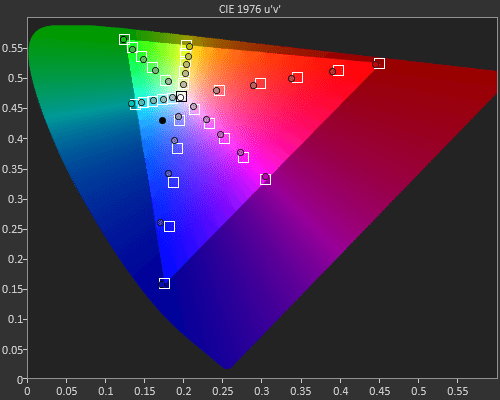

Sony VPL-HW45ES Bright Cinema Mode Post-Calibration CIE 1976 Saturation Sweeps (target REC 709)

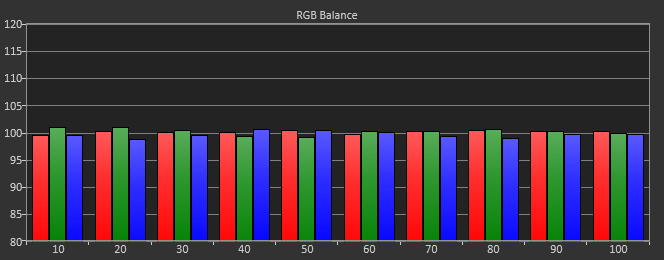

Sony VPL-HW45ES Bright Cinema Post-Calibration RGB Balance / Grayscale Tracking (target D65)

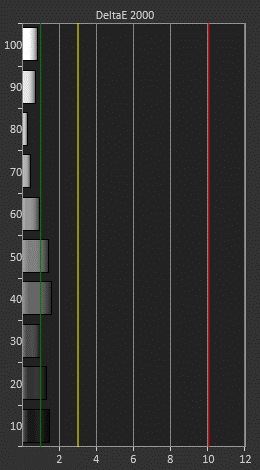

Sony VPL-HW45ES Bright Cinema Mode Post-Calibration DeltaE 2000 (target below error of 3)

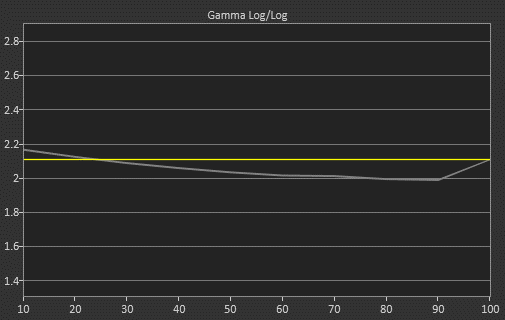

Sony VPL-HW45ES Bright Cinema Mode Pre-Calibration Gamma Log 2.01 Average Gamma (target 2.10)
