BenQ LU9750 PRO WUXGA 8,500 Lumen Large Venue Laser DLP Projector Review

Posted on August 30, 2022 by Philip Boyle
Performance - Installation Flexibility - And Reliability - Projector Reviews - Image
BenQ LU9750 Performance, Installation Flexibility, and Reliability

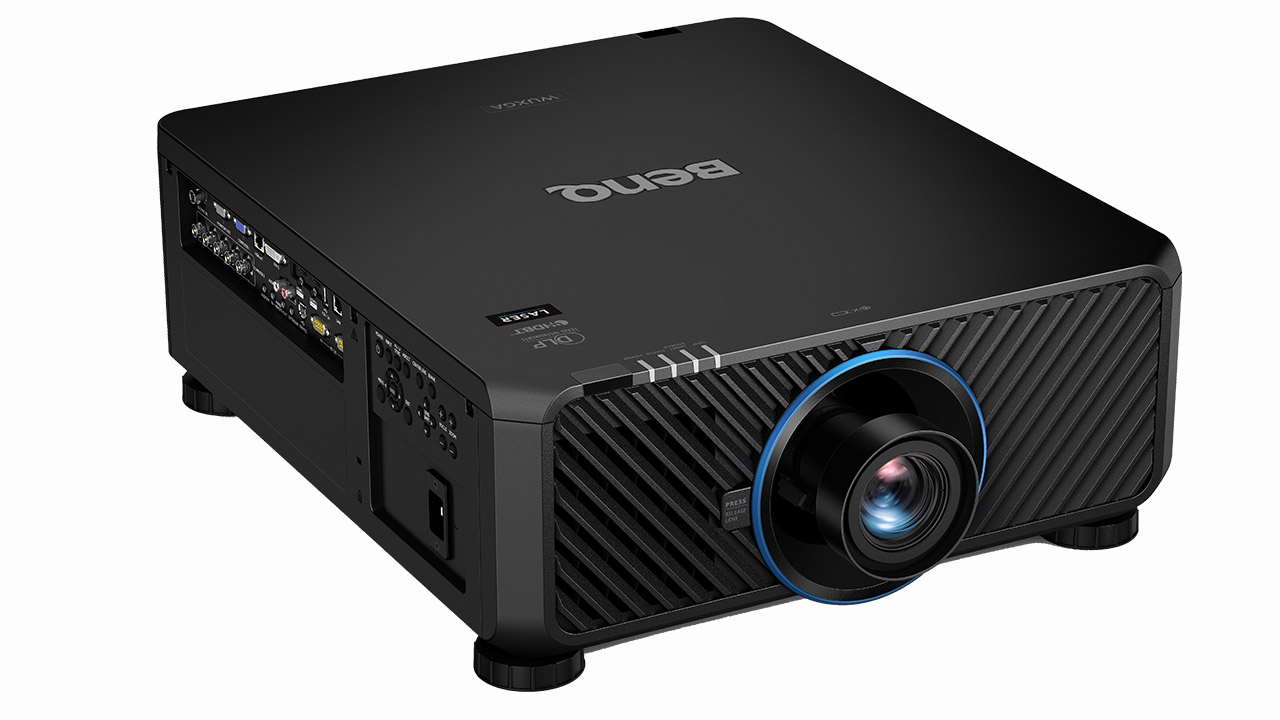

The BenQ LU9750 is an ultra-bright 8,500 ANSI lumens professional projector compatible with interchangeable lenses (not included) that sells for $11,999 MSRP. The LU9750 has a manufacturer-rated DYNAMIC CONTRAST Ratio of 3,000,000:1 and a WUXGA (1,920×1,200 pixels) native resolution. BenQ lists image quality, installation flexibility, and long-term reliability as the three key benefits of the LU9750.

A BenQ BlueCore laser diode is at the heart of the LU9750 light engine providing a light-source life that ranges from a guaranteed 20,000 hours in NORMAL mode up to an estimated 70,000 hours in DIMMING mode.

The LU9750 combines 24/7 operation and 360-degree installation. It is compatible with nine optional electrical lenses, making this projector an excellent choice for use in large venues for both single and multi-projector configurations. The LU9750 is ideally suited for use at large venues like tradeshows, galleries, museum installations, and many more due to its placement and feature flexibility.

BenQ LU9750 Specs
Price $11,999 MSRP (Lenses Optional)
Technology DLP Laser
Native Resolution 1920 x 1200
Brightness (Manufacturer Claim) 8500
Contrast 3,000,000:1
Zoom Lens Ratio Varies with each optional lens
Lens Shift Yes
Lamp Life 20,000 Normal mode, 30,000 Eco mode and 70,000 Dimming mode
Weight 58.2 pounds (26.4 kg)
Warranty 3 Years

OVERVIEW

According to Futuresource, BenQ is the best-selling global projector brand powered by Texas Instruments DLP technology. BenQ professional projectors offer a wide range of professional installation solutions, including digital, laser, and interactive projectors designed for the enterprise, education, and corporate entertainment markets.

This new BenQ projector is a purpose-built solution to the need BenQ identified for affordable premium-quality projectors. BenQ states that the LU9750 is designed using the company's decades-long legacy and expertise in creating great projectors to deliver high brightness, precise image accuracy, and long-lasting reliability with zero maintenance.

The Laser Phosphor-Light Source - Projector Reviews - Image
The laser phosphor-light source can reproduce 95% Rec.709 color gamut.

The LU9750 uses a 0.67-inch DLP image sensor made by Texas Instruments combined with laser/phosphor illumination. The 0.67-inch DLP Digital Micromirror Device (DMD) used in the LU9750 is a larger sensor than you would find in many consumer and even some professional DLP projectors. This larger sensor offers some significant advantages over smaller 0.47-inch DLP imagers, including that it is optimized for large format projectors. The 0.67-inch sensor's larger surface area is better at managing the high output from the projector's laser-light source.

Larger sensors can display a sharper image than DLP projectors using a smaller imager, especially when projected onto a large screen. On a WUXGA (1,920 x 1,080 pixels) projector like the LU9750, the larger DMD provides a low refresh rate of 34 ms, excellent color, and improved contrast performance versus a similarly specced 0.47-inch DLP chip.

The DLP device used in the LU9750 comprises over two million micromirrors that reflect the pure light of the laser-light source to the projector's phosphor and color wheels. With large format, high brightness projectors like the LU9750 heat is also transferred to the DLP imager. To keep the imager safe, Texas Instruments hermetically seals the DLP chip allowing it to resist heat for over 200,000 hours of 24/7 operation without experiencing any degradation and ensuring true-to-life colors and pristinely legible text for countless uses.

Yellow Phosphor And One Rgbw Color Wheel - Projector Reviews - Image

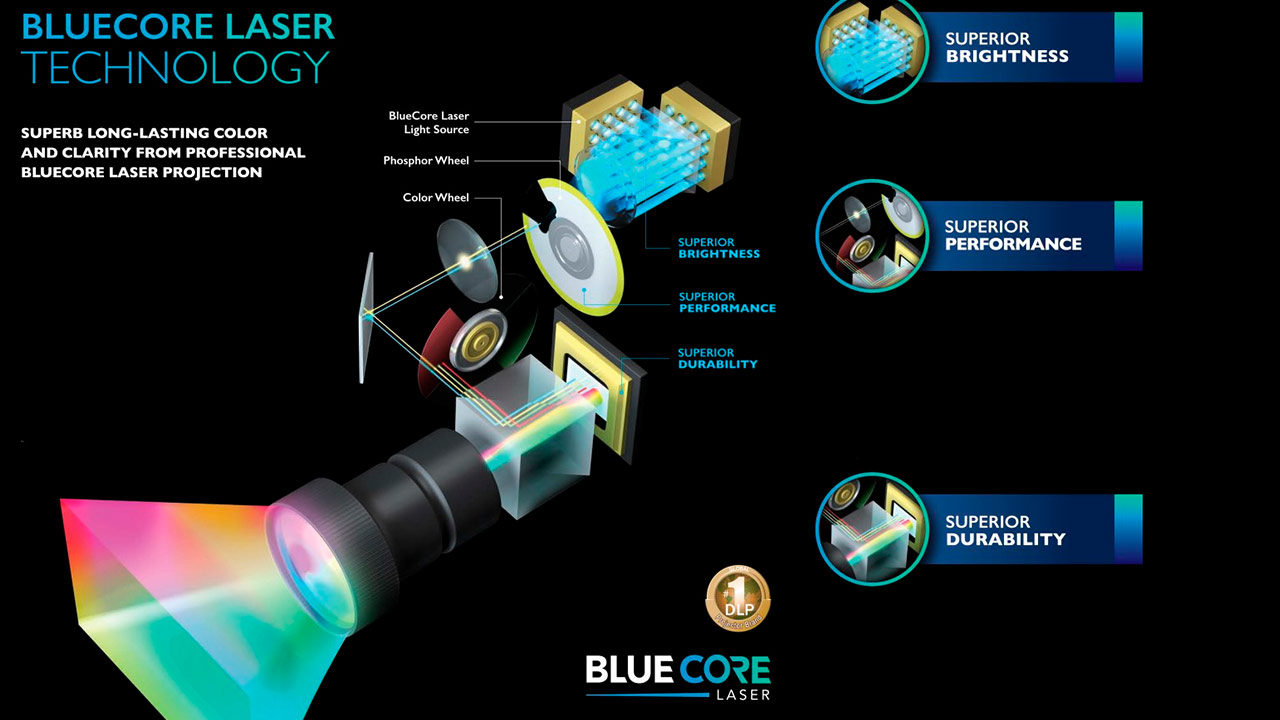

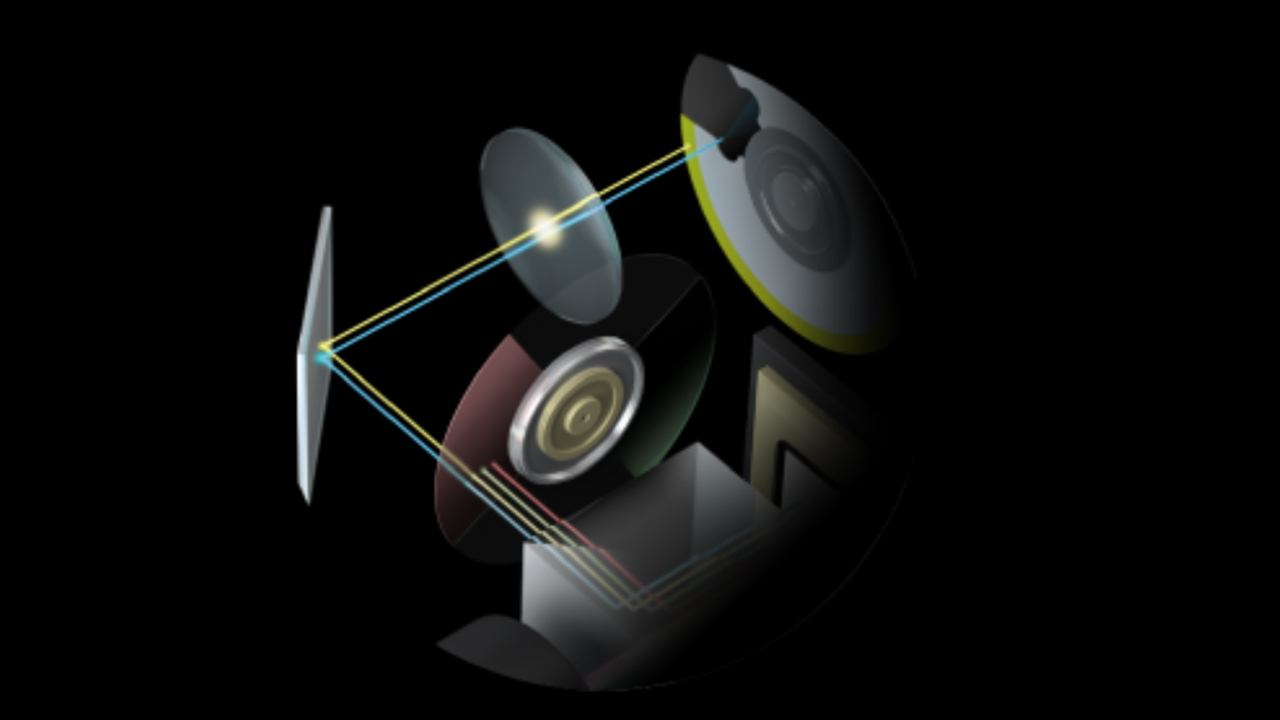

BenQ BlueCore laser-light engine with one yellow phosphor and one RGBW color wheel

The LU9750 uses a BenQ BlueCore laser-light engine with one yellow phosphor and one RGBW color wheel. The laser phosphor-light source can reproduce 95% Rec.709 color gamut and lists a dynamic contrast ratio of 3,000,000:1. The BlueCore laser-light engine is maintenance-free and features IP5X certification. The LU9750 comes with four manufacturer preset modes to control the laser's light output for the venue the projector is being used.

NORMAL ECO DIMMING CUSTOM
Sets the projector's light source to maximum output, providing a guaranteed 20,000 hours of life. Turns down the projector cooling fan to reduce noise and lowers laser brightness to extend the light-source life to an estimated 30,000 hours. Lowers laser brightness more than ECO mode, which extends light-source life up to an estimated 70,000 hours. Manually adjusts laser brightness by 1% increments between 20% to 100%.

The LU9750 offers professional features such as 360-degree Placement, Full Lens Shift, Electronic Zoom, and Focus to reduce installation complexity. BenQ also provides the ability to perform advanced adjustments such as Edge Blending and Warping in professional environments where multiple projectors are used to create one giant image. This projector also supports horizontal and vertical stacking.

BenQ exclusive white balance adjustments can reduce white balance variables between images projected from different projectors to such a low level that most people cannot see any difference. This reduction of variables allows for seamless and accurate picture quality without disruptive discrepancies and saves time adjusting color when installing projectors.

BenQ's LU9750 projector is compatible with multiple optional powered lenses designed to maximize throw ratio coverage. Nine (9) Japanese-made interchangeable lenses feature all-glass optics designed to eliminate chromatic aberration and color flare, provide the best-displayed image quality, and maximize installation options and projection layouts. All these are done with one quick one-button release, making changing this projector's lenses simple and secure.

Japanese-Made Interchangeable Lenses Feature All-Glass Optics. - Projector Reviews - Image
Japanese-made interchangeable lenses feature all-glass optics.
Model# Type Throw Ratio Zoom MSRP
LS1ST1A Ultra Wide Zoom 1.25:1 ~ 1.79:1 1.28x $1,599.00
LS1ST2A Wide Zoom 1.1 ~ 1.3 1.18x $1,599.00
LS1ST3A Short throw 0.77 ~ 1.1 1.42x $2,499.00
LS1ST4 Ultra Short Throw 0.38 Fixed $1,476.00
LS1SDA Standard 1.54 ~ 1.93 1.25x $1,089.00
LS1LT0 Semi long 1.93 ~ 2.9 1.5x $1,599.00
LS1LT1 Semi long 2.22 ~ 3.67 1.65x $1,599.00
LS1LT2 Long zoom 3.58 ~ 5.38 1.5x $1,599.00
LS1LT3 Long Zoom 5.31 ~ 8.26 1.55x $1,599.00

The LU9750 accepts 3D, HDR, and 4K video resolutions. The projector supports centralized control with BenQ's MDA and DMS Local software. This projector is also fully compatible with AMX, Crestron, Extron, PJ Link, and RS232 control and monitoring protocols.

The LU9750 can also save up to ten (10) lens position presets and projector setup presets.

BenQ has an extensive lineup of conference room projectors; in addition to the LU9750, they offer multiple models with laser and WUXGA resolution. The table below shows the differences between the models.

Model Number LU9715 (Prev Model) LU9750 (New) LU9800 (New)
Price $11,999 MSRP $11,999 MSRP $13,999 MSRP
Resolution WUXGA - 1,920 x 1,200 WUXGA - 1,920 x 1,200 WUXGA - 1,920 x 1,200
Light Source BenQ BlueCore Laser BenQ BlueCore Laser BenQ BlueCore Laser
Brightness 8,000 ANSI Lumens 8,500 ANSI Lumens 10,000 ANSI Lumens
HDR Support NO HDR10/HLG HDR10/HLG
4K Input NO 4K 60Hz HDMI 4K 60Hz HDMI
Preset Modes Yes - 3 Yes - 9 + 2 User Yes - 9 + 2 User

The BenQ LU9750 is 3D-capable, accepting content from multiple source types. The projector is compatible with 3D Blu-ray players, 3D broadcasting, and 3D-capable game consoles. But the newest demand for this technology is in the education sector. They will be one of the largest consumers of 3D projectors in the next few years because 3D projectors help increase classroom engagement and knowledge retention. These projectors can be used in technical disciplines like design, engineering, and other specialized trades. In my opinion, this is the future of 3D projection.

HIGHLIGHTS

  • 8,500 ANSI lumens (manufacturer-rated)
  • $11,999 MSRP (Lenses not included)
  • WUXGA resolution (1,920 x 1,200 pixels)
  • Texas Instruments 0.67-inch DLP technology
  • BenQ BlueCore Laser life of 20,000 in NORMAL mode, 30,000 hours in ECO mode, and 70,000 in DIMMING mode.
  • Sealed light engine, so no need for filter replacement
  • IP5X certification offers superior dust proofing for severe conditions
  • 3,000,000:1 DYNAMIC CONTRAST Ratio
  • Motorized Zoom, Focus, Lens Shift, and Memory
  • Supports horizontal and vertical stacking
  • Large 2D Keystone and 4-Corner adjustments
  • 360-degree positioning
  • PORTRAIT mode
  • HDBaseT
  • Simple and Advanced Stacking supported
  • 3D-capable
  • 24/7 operation
  • BenQ MDA software for centralized control of multiple projectors
  • AMX, Crestron RoomView, Extron IPLink, and PJLink software- compatible
  • RS-232 Protocols
