BenQ W7500 Projector Advanced Calibration

Posted on July 7, 2014 by

About this Calibration Information

Mike completed the CMS calibration of the individual colors, which are provided below. And, of course, some additional comments from him.

BenQ W7500 CMS

Color Management Settings (Default is 50)
Red Green Blue Cyan Magenta Yellow
Hue 56 59 50 65 58 43
Gain 61 54 59 56 55 51
Saturation 49 50 49 60 47 47

Mike's CMS Calibration Notes

The color gamut by default was pretty accurate.  Red, blue and magenta had the highest gain and saturation errors pre-calibration, while cyan was off a bit in hue.  Green and yellow, often the most inaccurate colors with many DLP projectors, were both quite good by default.  The CMS worked well, bringing the Delta E error down from a 3.9 average to 0.6.  Chromaticity errors, which ranged from -14% to 12.5% were also reduced to a range of -2.3% to 2.1%.

Calibration Charts (Before and After)

Click to enlarge these charts, pre- and post-calibration.

BenQ W7500 Pre- and Post-Calibration Charts

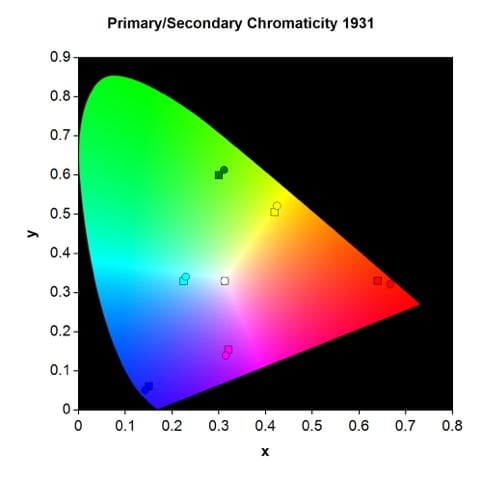

CIE Chart Pre-Calibration

CIE Chart Post-Calibration (CMS)

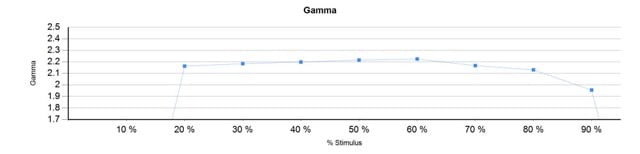

CIE Gamma Chart

CIE Chart Grayscale Post-Calibration
