Epson Home Cinema 3700 – Advanced Calibration

Posted on February 28, 2017 By Lisa Feierman

This is the advanced calibration information for the Epson Home Cinema 3700 projector, available only to our paid subscribers.

Epson HC3700 CMS Settings: Cinema Mode

Color Management Settings for Cinema Mode
	Red	Green	Blue	Cyan	Magenta	Yellow
Hue	50	50	57	47	72	40
Saturation	59	50	20	52	18	50
Brightness	50	42	66	40	77	56

Epson HC3700 CMS Settings: Bright Cinema Mode

Color Management Settings for Bright Cinema Mode
	Red	Green	Blue	Cyan	Magenta	Yellow
Hue	50	50	50	50	61	43
Saturation	50	50	50	50	40	50
Brightness	45	38	39	38	47	48

Epson Home Cinema 3700 Cinema Mode Post-Calibration Charts

Cinema Post Calibration Results

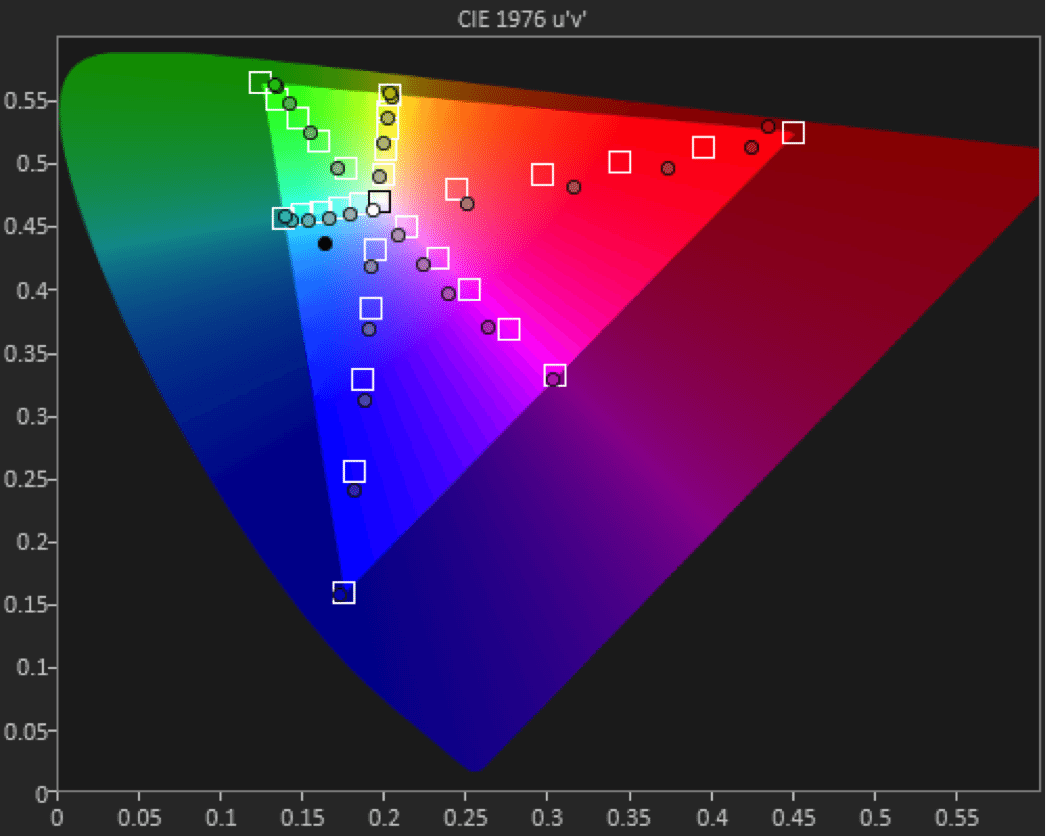

Epson Home Cinema 3700 Cinema Mode Post-Calibration CIE 1976 Saturation Sweeps (target BT.709)

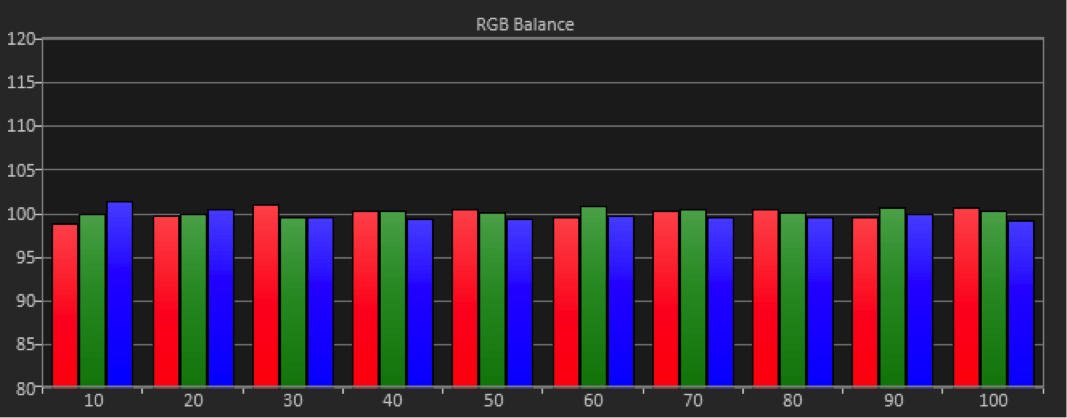

Epson Home Cinema 3700 Cinema Mode Post-Calibration RGB Balance / Grayscale Tracking (target D65)

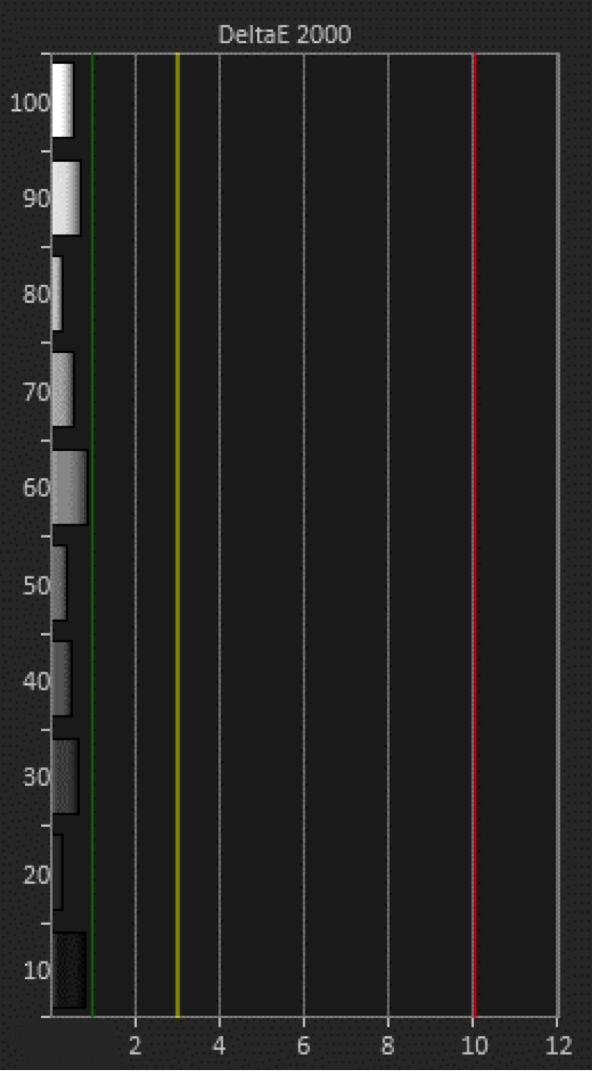

Epson Home Cinema 3700 Cinema Mode Post-Calibration DeltaE 2000 (target below error of 3)

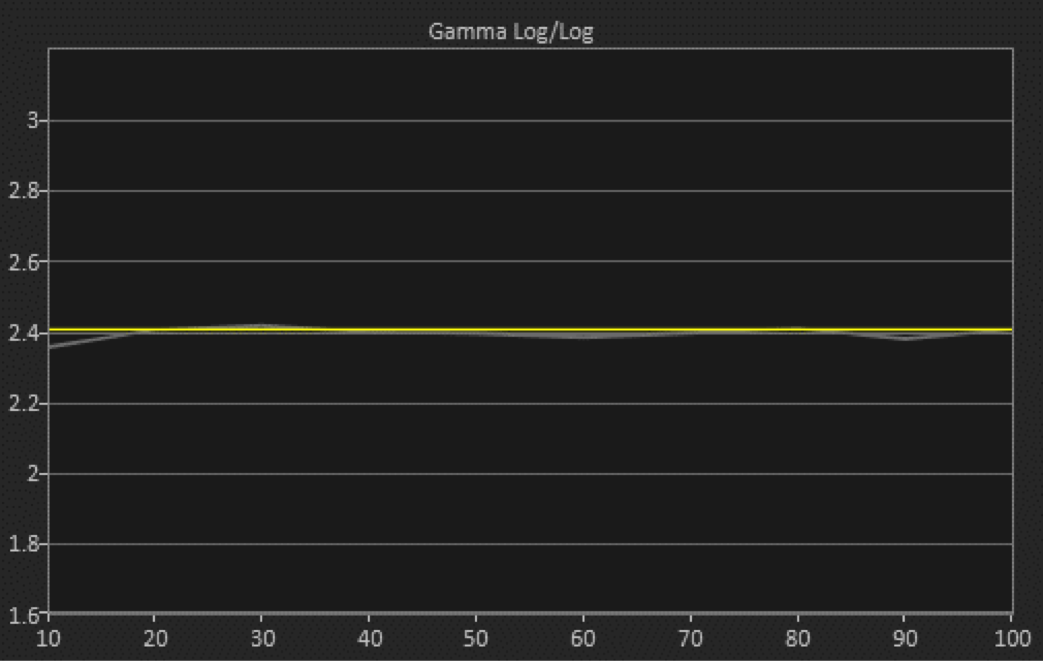

Epson Home Cinema 3700 Cinema Mode Post-Calibration Gamma Log 2.38 Average Gamma (target 2.40)

Bright Cinema Mode Post-Calibration Charts

Bright Cinema - Post Calibration Results

Epson Home Cinema 3700 Bright Cinema Mode Post-Calibration CIE 1976 Saturation Sweeps (target BT.709)

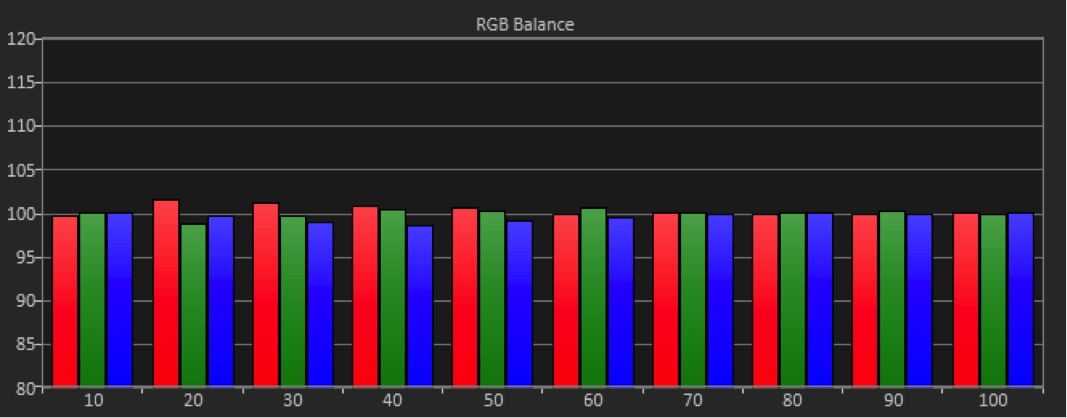

Epson Home Cinema 3700 Bright Cinema Post-Calibration RGB Balance / Grayscale Tracking (target D65)

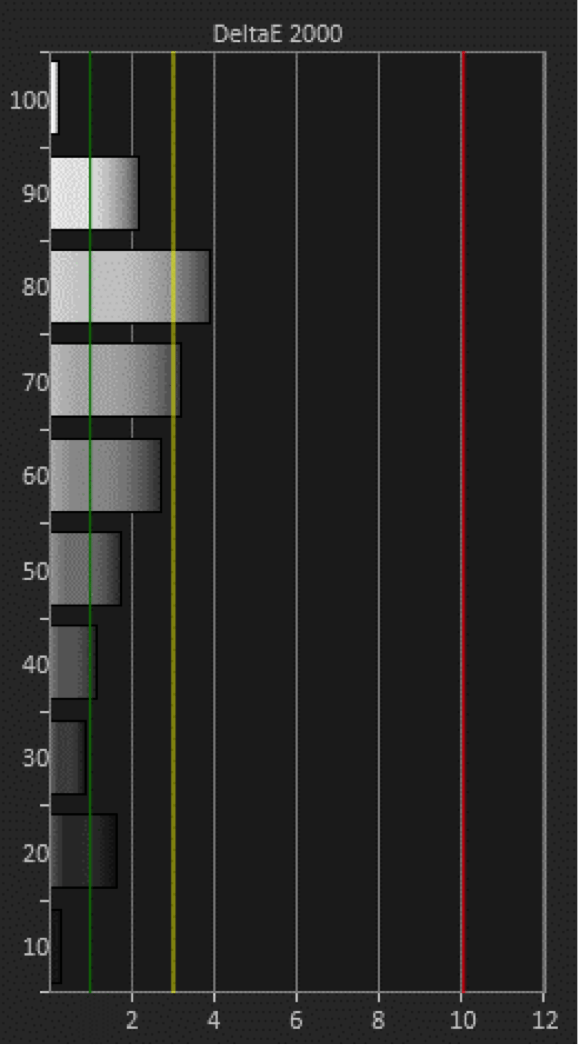

Epson Home Cinema 3700 Bright Cinema Mode Post-Calibration DeltaE 2000 (target below error of 3)

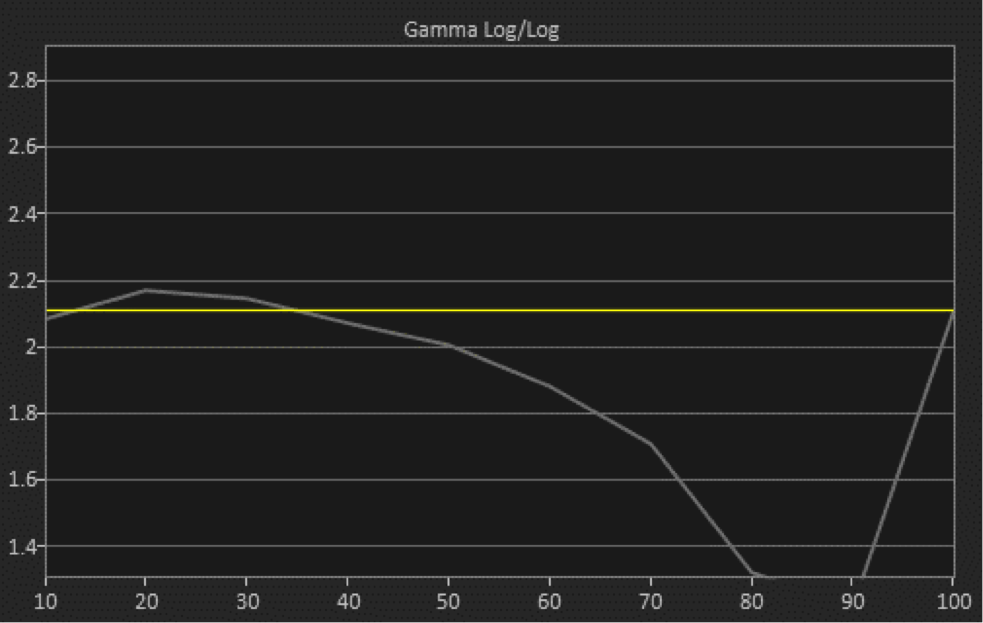

Epson Home Cinema 3700 Bright Cinema Mode Post-Calibration Gamma Log 1.87 Average Gamma (target 2.10)
