Epson PowerLite 109W Business/Education Projector Review – Hardware 2: The Control Panel, The Remote Control, The Menus

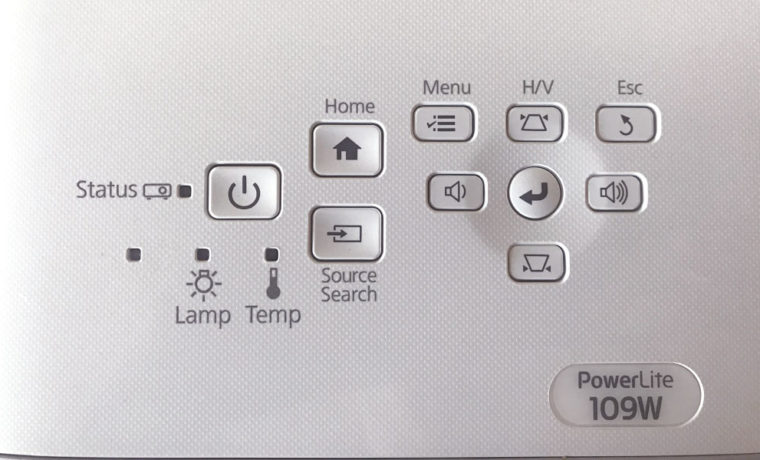

The control panel is located on the top of the projector, next to the indicator lights, of which there are four. They surround the Power button. To its right, stacked, are the Home and Source Search buttons. Next to that are the navigational buttons, with a Menu and Esc button on either side of the Up Arrow button. The rest of those arrow buttons surround the Enter button, and all four directional arrow keys serve a dual function. Up and Down deal with the vertical and horizontal keystone correction, and the Left and Right ones control volume.

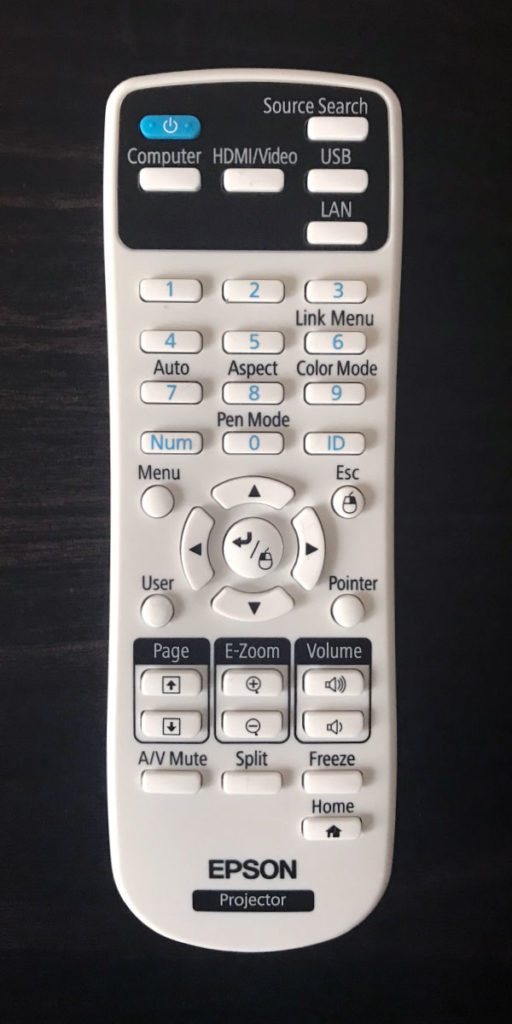

The PowerLite 109W’s remote control is a bit thick, but is very well laid out with a lot of “stuff.” The remote is separated into sections, with the top one featuring a black background, a Power and Source Search, as the basic “hot keys” for Computer, HDMI/Video, USB and LAN inputs to switch between them quickly.
The section below is a basic number pad (1-9 and 0) and a Num(ber) button to the left of the 0 and an ID button to its right. The ID button is for choosing which projector to control for multi-projector set ups. The Num button changes the keypad exclusively to a number keypad, which is useful because many of these buttons serve a dual function.
The number 3 is also the Link Menu button, which displays the main menu of the connected HDMI device. The 4 button – Auto – automatically adjusts position, tracking and sync settings. The number 5 adjusts the aspect ratio, 6 is your shortcut to shifting through Color Modes, and 8 activates Pen Mode.
Below the number pad is a standard arrow keypad. The classic up, down, left and right buttons surround the enter key, with a Menu button on the top left, the Esc button on the top right – just like the control panel. Below, to the left of the down key, is the User button, which is customizable with multiple functions.
On the opposite side, there is a Pointer button, which makes a pointer arrow magically appear on the screen, that you can move to point at a specific area of interest using the arrow keys on the remote. This function works beautifully.
Under the arrow keypad are the buttons for Page, E-Zoom and Volume. Each of these functions have two buttons – up and down for Page, and +/– for E-Zoom and Volume. Below those are several buttons, including A/V mute for muting audio, Split, which splits the screen between two projected images (awesome), Freeze for stopping video action, and a Home button. That’s it for the remote.

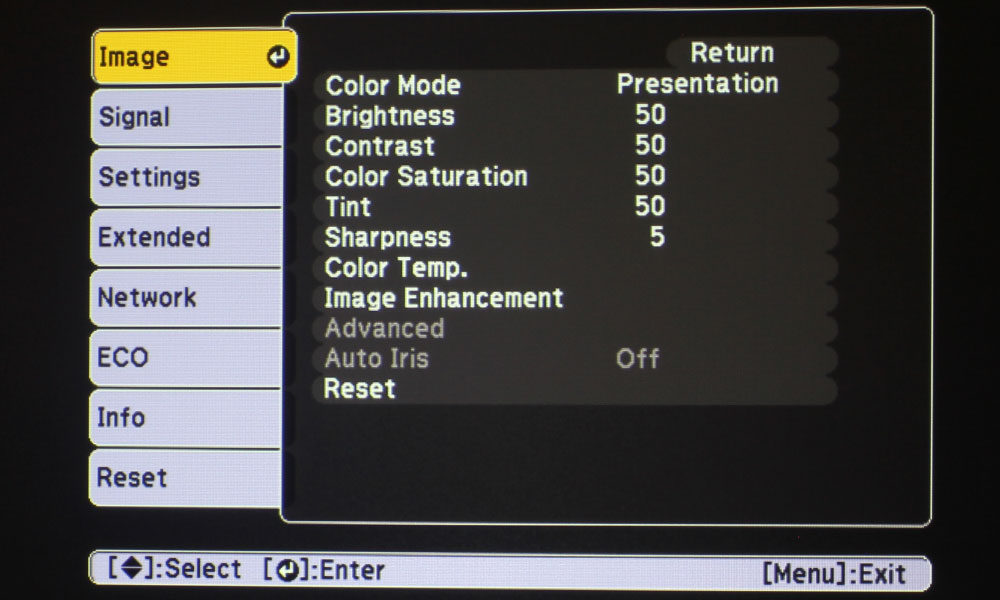

Epson PowerLite 109W Image Menu

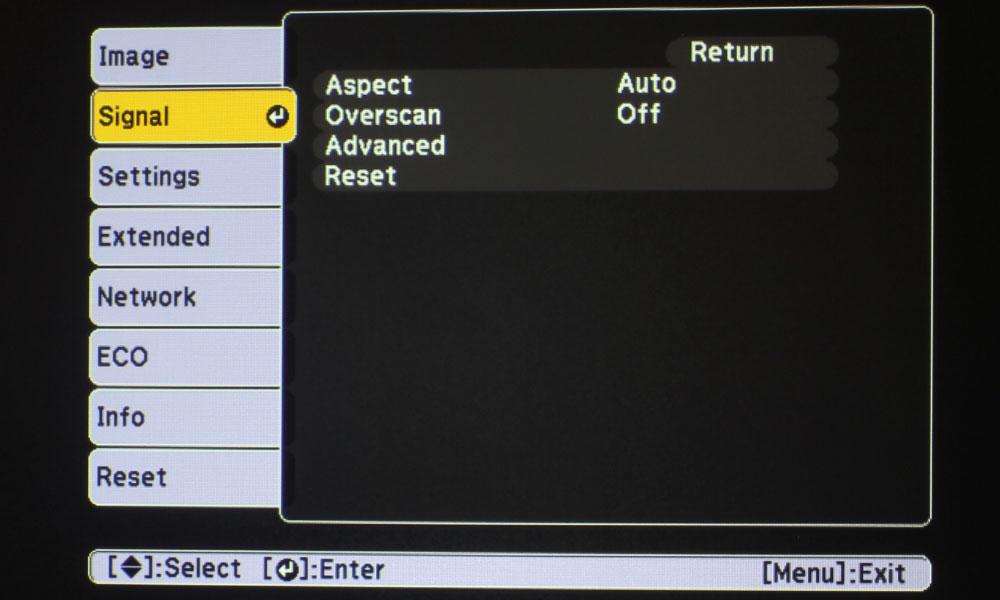

Epson PowerLite 109W Signal Menu

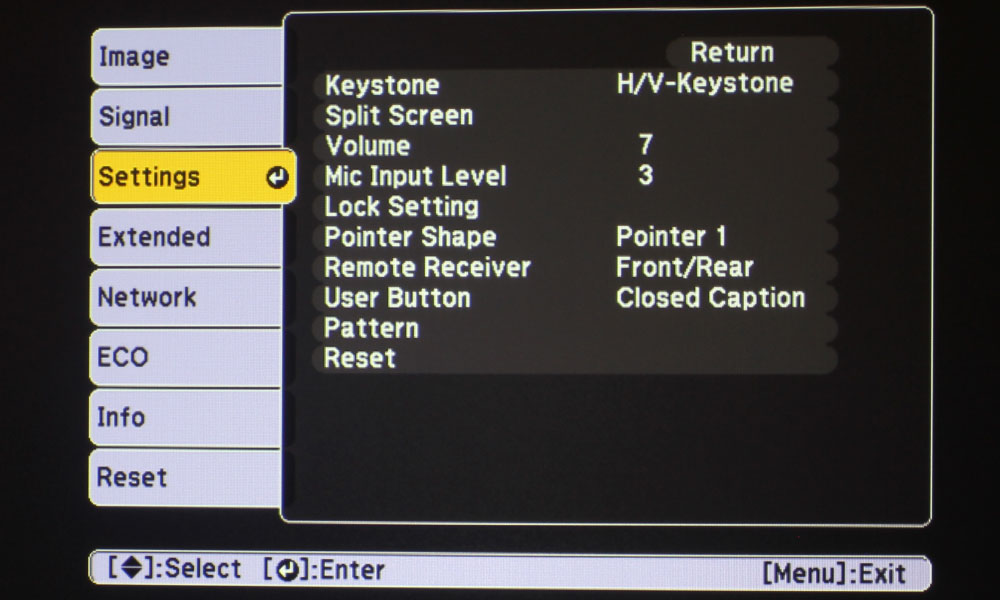

Epson PowerLite 109W Settings Menu

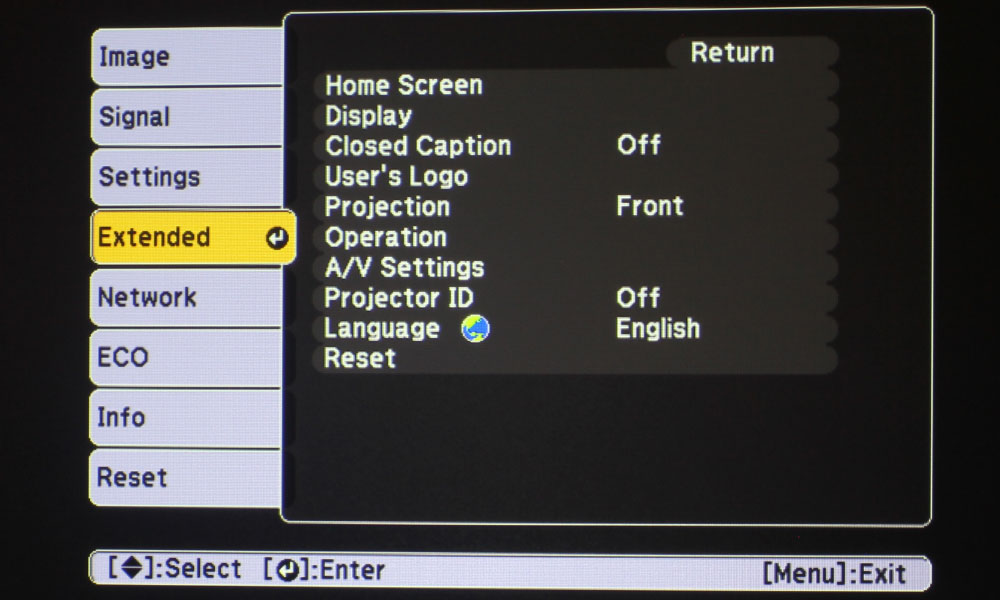

Epson PowerLite 109W Extended Menu

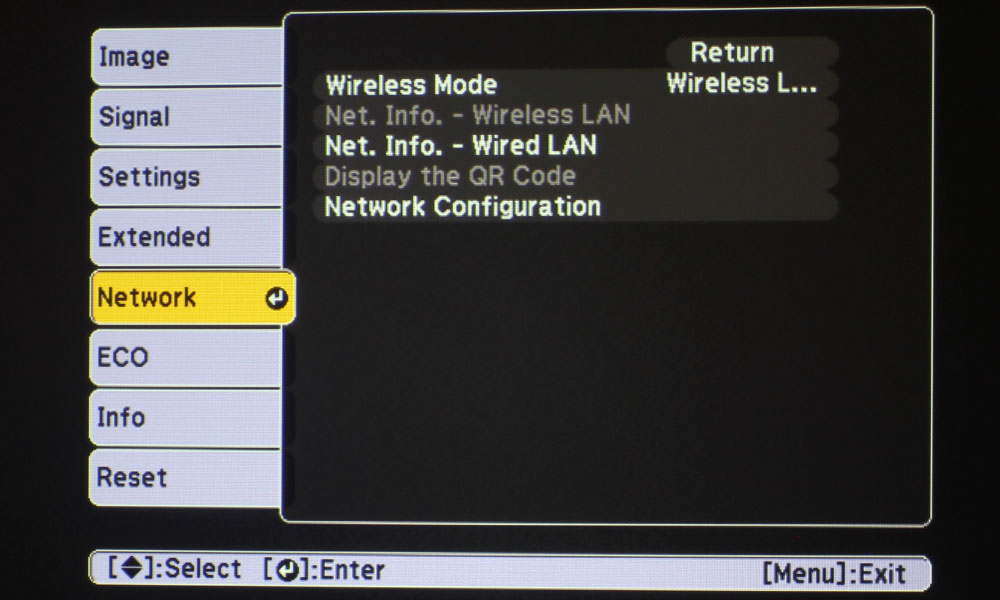

Epson PowerLite 109W Network Menu
Epson PowerLite 109W ECO Menu

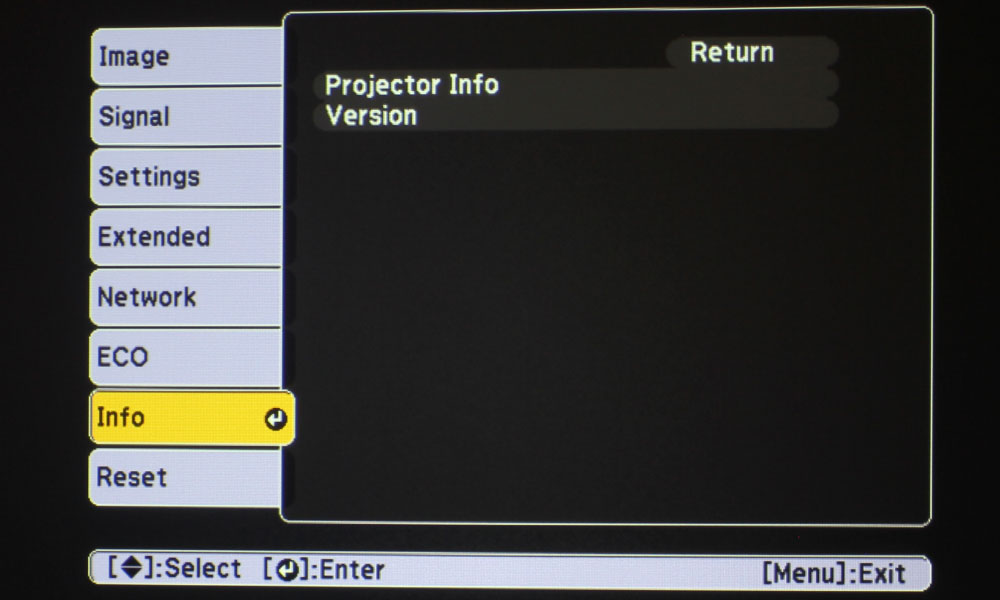

Epson PowerLite 109W Info Menu

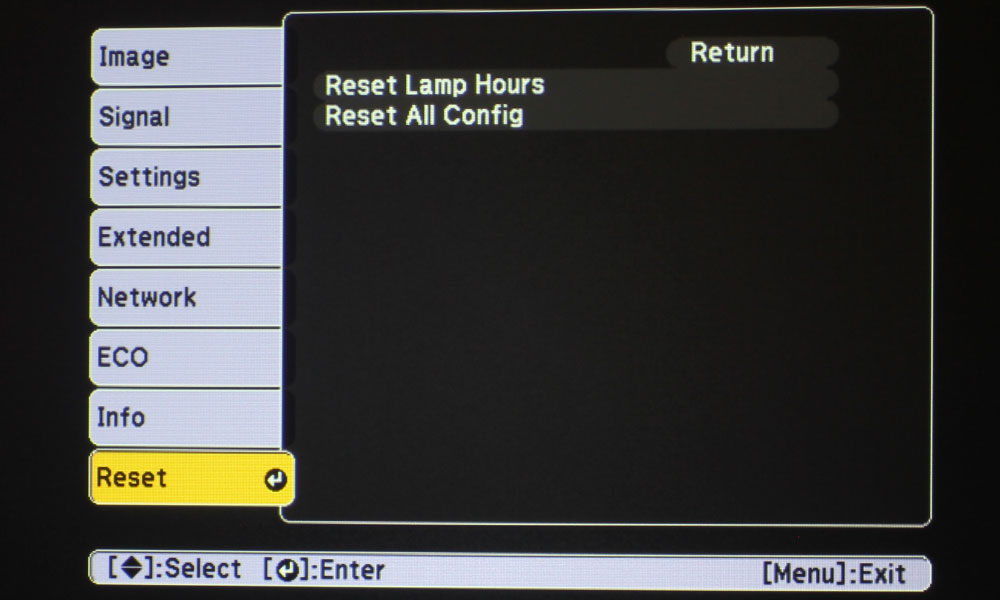

Epson PowerLite 109W Reset Menu
Epson has an excellent menu system that is well laid out and easy to navigate. Check out the slider above to see the menus.
