Optoma UHD65 Projector – Advanced Calibration

Posted on May 11, 2017 By Lisa Feierman

This is the advanced calibration information for the Optoma UHD65 projector.  Welcome subscribers!

Most important, on this page, are the color management settings (CMS), that calibrate each of the individual primary, and secondary colors.  Eric also has provided additional CIE and other charts showing the measured performance!

Optoma UHD65 CMS Settings: Reference Mode

Color Management Settings for Reference Mode
Red Green Blue Cyan Magenta Yellow
x Offset 6 -15 5 -2 0 0
y Offset -10 10 0 6 0 0
Brightness -3 5 16 4 0 7

Optoma UHD65 CMS Settings: Vivid Mode

Color Management Settings for Vivid Mode
Red Green Blue Cyan Magenta Yellow
x Offset 0 -13 5 17 -15 -11
y Offset -15 -7 2 25 -11 12
Brightness 7 -5 -20 8 14 37

Optoma UHD65 CMS Settings: HDR Mode

Color Management Settings for HDR Mode
Red Green Blue Cyan Magenta Yellow
x Offset 0 -17 -9 -7 39 33
y Offset 0 -4 0 -8 0 0
Brightness 11 10 2 8 10 21

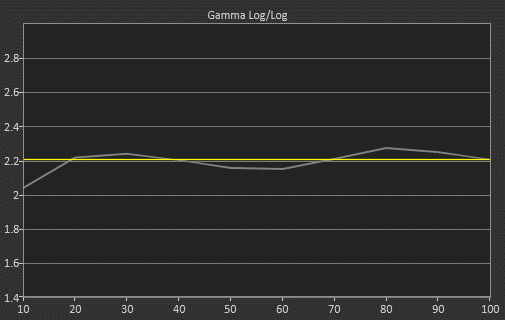

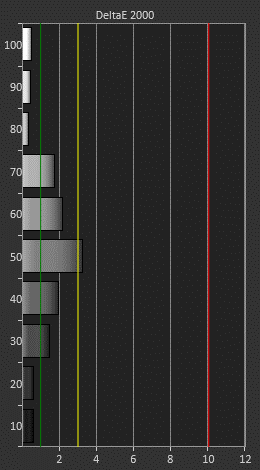

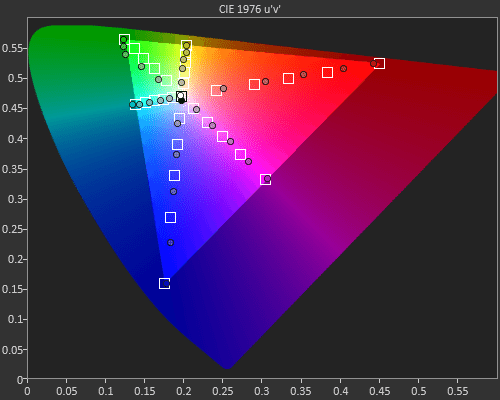

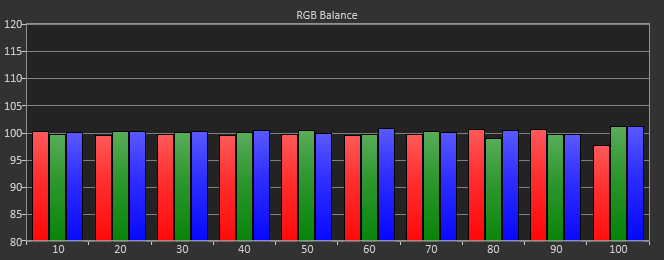

Optoma UHD65 Reference Mode Post-Calibration Charts

Reference Mode Post-Calibration Results

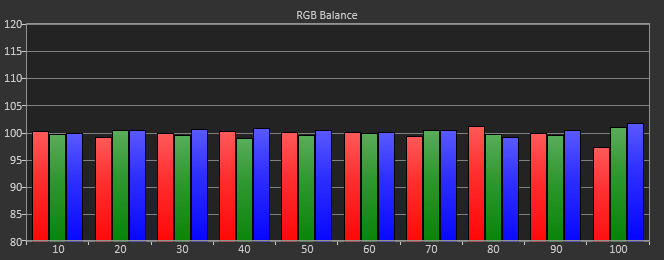

Vivid Mode Post-Calibration Charts

Vivid Mode Post-Calibration Results

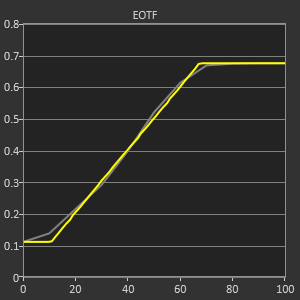

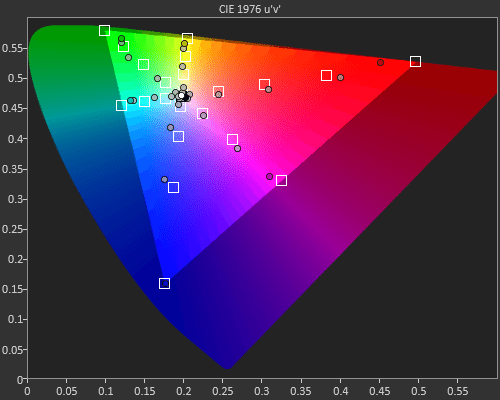

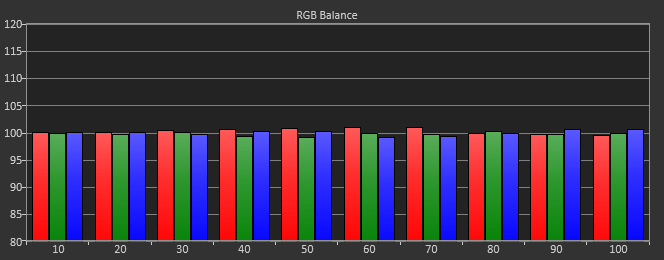

HDR Mode Post-Calibration Charts

HDR Mode Post-Calibration Results
