ViewSonic PJD-7828HDL Projector Review - Advanced Calibration

Posted on August 26, 2018 by Art Feierman

ViewSonic PJD-7828HDL Projector Review – Advanced Calibration: CMS Calibration, Calibration Charts

CMS Settings for “Best Mode” – Movie Mode

RGBCMYHueSaturationGain
Red0103130
Green30120135
Blue0103110
Cyan0100110
Magenta40106120
Yellow0103130

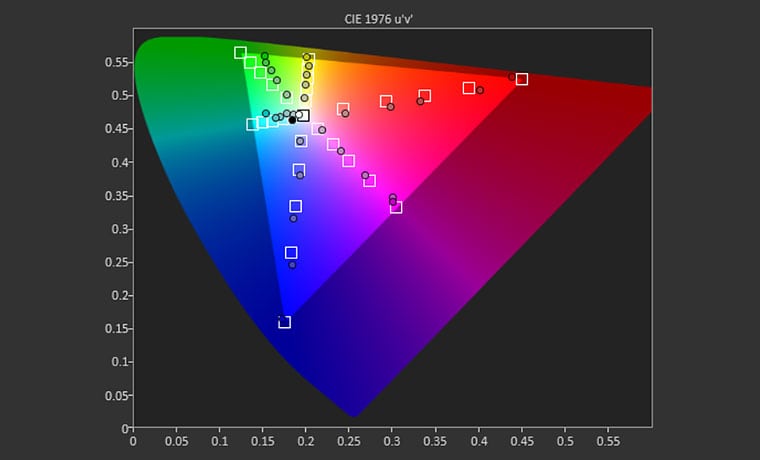

The good news is the PJD7828HDL does provide full CMS controls, the bad news is they do little to help the poor performing color gamut. Red, blue, magenta and yellow were 4 colors I was able make slight improvements too, green & cyan not so much. The end results exhibits both green & red under-saturated at 100% and running towards yellow. Blue is a little over-saturated at 20, 40 & 80%. Cyan’s hue control did not work well so I left it alone. Also, it could not achieve 100% saturation, the best it could do was 80%. Magenta’s 40, 60 & 80% saturation levels were very high with the 80% level reading 100%. Yellow fared the best with just a little error in hue at 100%.

ViewSonic PJD-7828HDL Projector Review – Advanced Calibration: CMS Calibration, Calibration Charts

CMS Settings for “Best Mode” – Movie Mode

RGBCMYHueSaturationGain
Red0103130
Green30120135
Blue0103110
Cyan0100110
Magenta40106120
Yellow0103130

The good news is the PJD7828HDL does provide full CMS controls, the bad news is they do little to help the poor performing color gamut. Red, blue, magenta and yellow were 4 colors I was able make slight improvements too, green & cyan not so much. The end results exhibits both green & red under-saturated at 100% and running towards yellow. Blue is a little over-saturated at 20, 40 & 80%. Cyan’s hue control did not work well so I left it alone. Also, it could not achieve 100% saturation, the best it could do was 80%. Magenta’s 40, 60 & 80% saturation levels were very high with the 80% level reading 100%. Yellow fared the best with just a little error in hue at 100%.
