Benq HT6050 Projector - Advanced Calibration Information

Posted on August 27, 2016 by Art Feierman

This is the advanced calibration information for the Benq HT6050 projector, available only to our paid subscribers.

CMS for THX Mode (User 1) Post-Calibration

Post-calibration THX Mode (User 1) Color Management Settings
	Red	Green	Blue	Cyan	Magenta	Yellow
Hue	235	154	225	227	172	232
Gain	187	196	190	199	193	201
Saturation	200	197	196	166	182	196

CMS for THX Alternate Mode Post-Calibration

Post-calibration THX Alternate Mode Color Management Settings
	Red	Green	Blue	Cyan	Magenta	Yellow
Hue	226	153	225	271	128	250
Gain	210	238	252	216	205	219
Saturation	199	197	196	165	184	196

THX Mode (User 1) Post-Calibration Charts

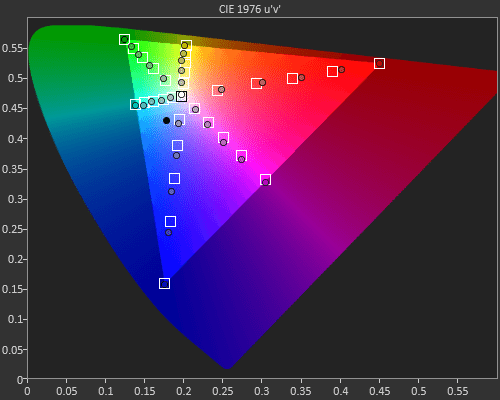

BenQ HT6050 THX Mode (user 1) Post-Calibration CIE 1976 Saturation Sweeps (target REC 709)

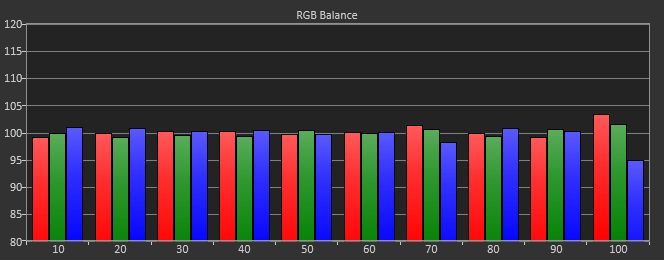

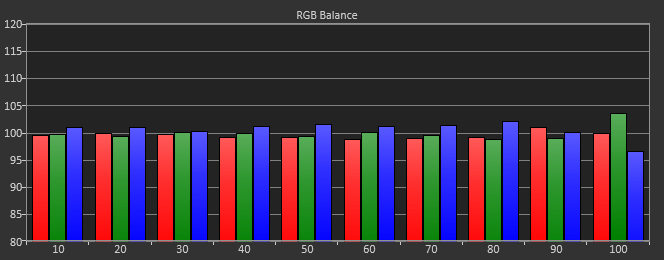

BenQ HT6050 THX Mode (user 1) Post-Calibration RGB Balance / Grayscale Tracking (target D65)

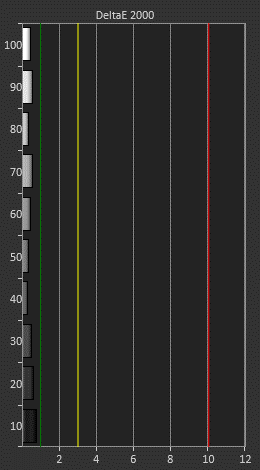

BenQ HT6050 THX Mode (user 1) Post-Calibration DeltaE 2000 (target below error of 3)

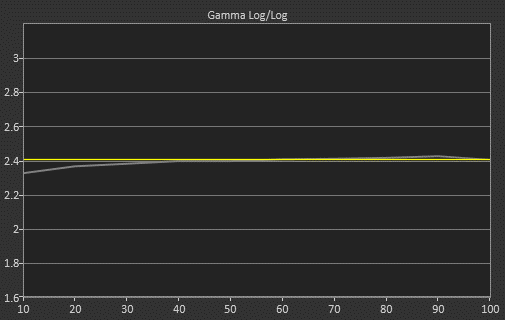

BenQ HT6050 THX Mode (user 1) Post-Calibration Gamma Log 2.39 Average Gamma (target 2.40)

THX Alternate Mode Post-Calibration Charts

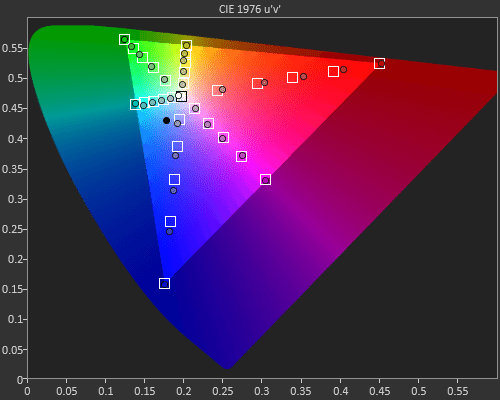

BenQ HT6050 THX Alternate Mode (2.2 / Brilliant Color) Post-Calibration CIE 1976 Saturation Sweeps (target REC 709)

BenQ HT6050 THX Alternate Mode (2.20 / Brilliant Color) Post-Calibration RGB Balance / Grayscale Tracking (target D65)

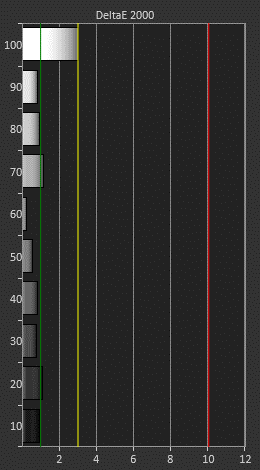

BenQ HT6050 THX Alternate Mode (2.20 / Brilliant Color) Post-Calibration DeltaE 2000 (target below error of 3)

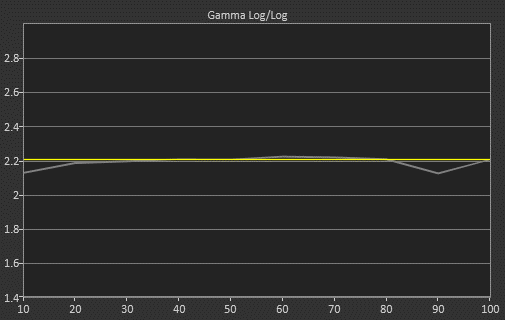

BenQ HT6050 THX Alternate 2.20 / Brilliant Color THX Mode Post-Calibration Gamma Log 2.21 Average Gamma (target 2.2)

Vivid Mode (User 2) Post-Calibration Charts

BenQ HT6050 Vivid Mode (user 2) Post-Calibration DeltaE 2000 (target below error of 3)

BenQ HT6050 Vivid Mode (user 2) Post-Calibration Gamma Log 2.12 Average Gamma (target 2.10)

BenQ HT6050 Bright Mode Color Temp set to Lamp Native shows extreme plus green/blue color temp over 8000 kelvin.

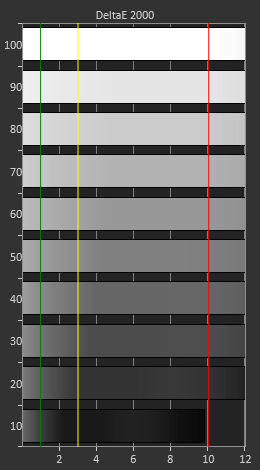

BenQ HT6050 Off the chart DeltaE 2000!
