Posted on December 20, 2017 By Ron Jones
UHZ65 4K Home Theater Projector – Hardware 2: Control Panel, Remote Control, The Menus
If Optoma’s goal was to make the control panel nearly invisible. I’d say they were successful. They kept the number of buttons to a minimum. Some companies will add a number of extra buttons for quick access to more features, but, from a practical standpoint, other than installers, we live and die by the remote control.

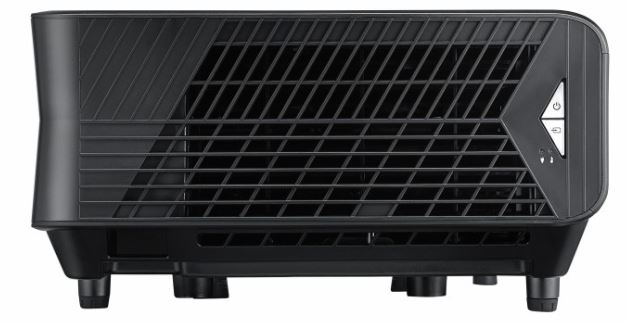

The power and input source buttons are located along the rear edge of the right side of the projector, as shown in the upper photo above.

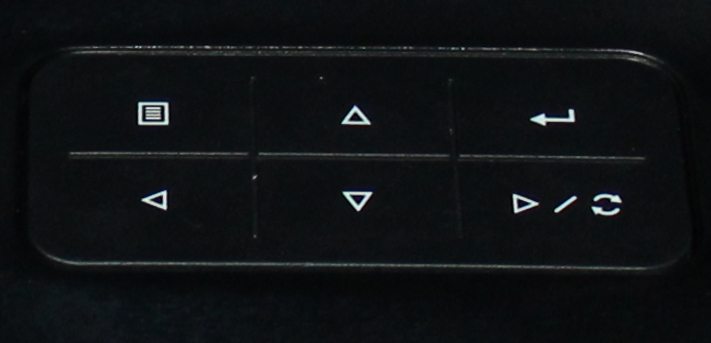

The remaining controls, for navigating the projector’s menus, are located behind the pop-open door on the top of the projector. These buttons are shown in the lower photo above.
Normally you would walk right by, not notice the controls, but for the power indicator light. That light will be red if the projector is off, or blue if on, and flashing while powering up or down.
The controls are straight forward, but have an odd arrangement by splitting them up in two locations.
Still, it’s perfectly functional. What it lacks are any “extras” which is not really a problem, as we all pretty much rely on the remote control.
The supplied remote control provides all of the essential functions and has a rather bright white backlight. Toward the top are power on and off buttons and below those are 3 User mode buttons. Below those are a group of buttons for various projector adjustments and just below those are the menu and navigation buttons. The up/down navigation buttons due double duty by also controlling sound volume for the projector’s internal speakers. Finally, toward the bottom are buttons for the projector’s signal inputs.

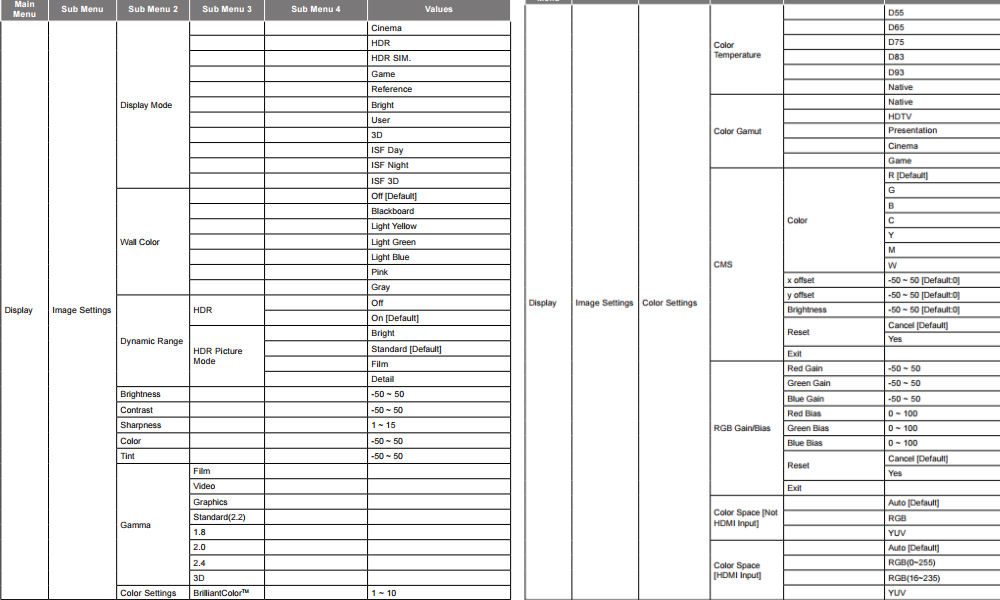

Optoma UHZ65 Display Menu Tree: Display Mode, Wall Color, Dynamic Range, Birghtness, Contrast, Sharpness, Color, Tint, Gamma, Color Settings...

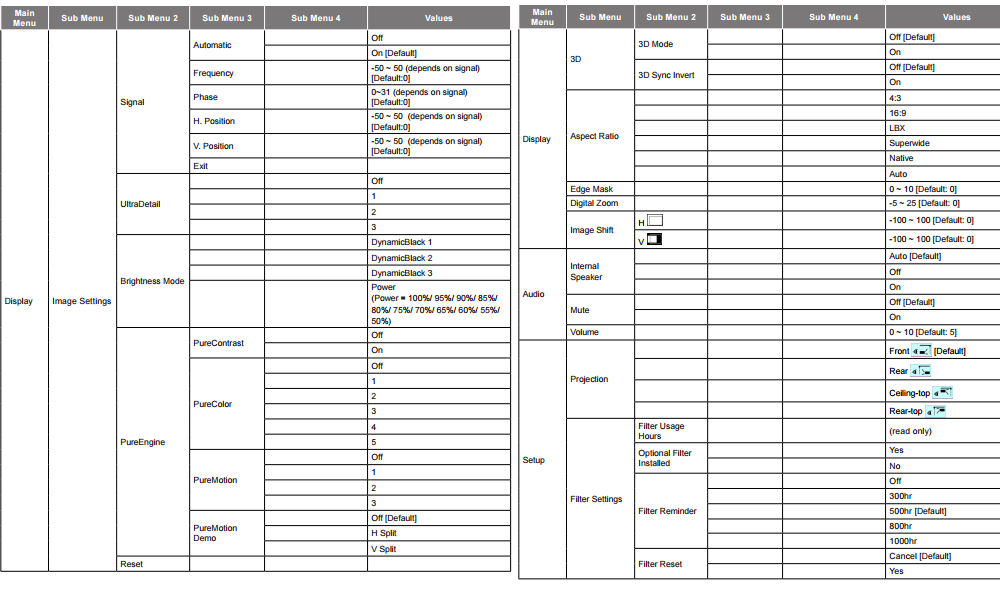

Optoma UHZ65 Display Menu Tree Continued: Image Settings, 3D, Aspect Ratio, Edge Mask, Digital Zoom, Image Shift. Optoma UHZ65 Audio Menu Tree: Internal Speaker, Mute, Volume. Optoma UHZ65 Setup Menu Tree: Projection, Filter Settings...

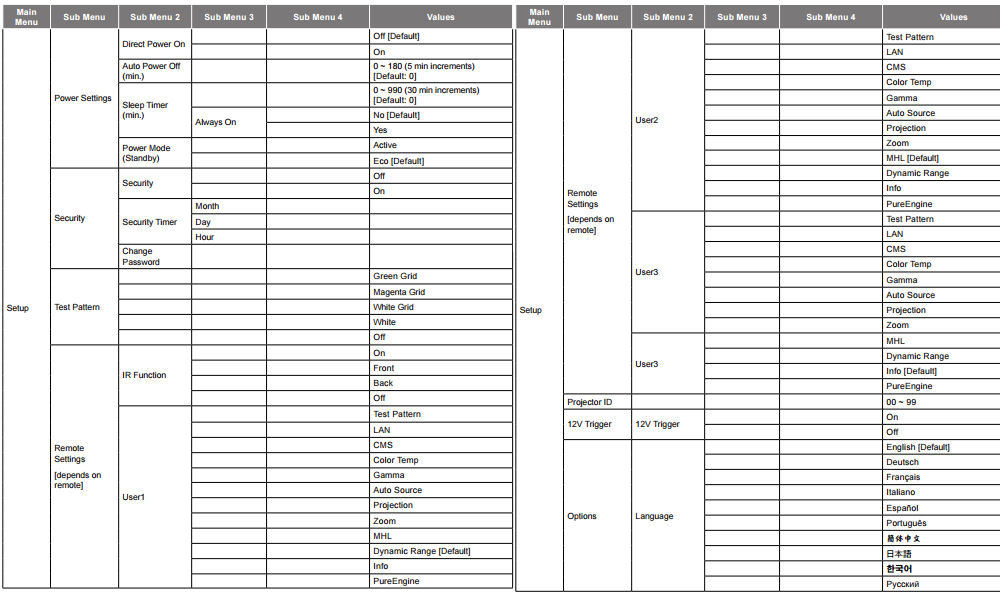

Optoma UHZ65 Setup Menu Tree Continued: Power Settings, Security, Test Pattern, Remote Settings, Projector ID, 12V Trigger, Options...
Optoma UHZ65 Setup Menu Tree Continued: Options continued, Reset. Optoma UHZ65 Reset Menu Tree: Reset OSD, Reset to Default. Optoma UHZ65 Network Menu Tree: LAN, Control. Optoma UHZ65 Information Menu Tree: Regulatory, Serial Number, Source, Resolution, Refresh Rate, Color Depth, Color Format, Display Mode, Power Mode (Standby), Light Source Hours, Network Status, IP Address, Projector ID, Filter Usage Hours, Brightness Mode, FW Version.
