Compare Projectors-Mitsubishi HC3800 vs. Optoma HD20 2

Posted on March 14, 2008 by Art Feierman

Picture Quality Comparing the Projectors Picture Quality

Right out of the box, we were very impressed with the HC3800 projectors' performance, and the same was true of the HD20. That's right two pretty inexpensive projectors, that look pretty good, right out of the box. The Optom HD20 is a little thin on greens in best mode, while the HC3800 is just the tiniest bit too blue.

Black level performance:

Oh what a difference a few hundred dollars make, in this case. The Optoma HD20, I should note, is no slouch when compared to other entry level projectors near its price. Even without its lamp dimming ImageAI engaged (don't bother - more later), its blacks are the best of the three sub-$1000 1080p projectors. Despite that, it's not a match for the HC3800, which may well have the best blacks of any under $4000 projector that lacks a dynamic iris. Oh, there are plenty, that can do better, but those all have dynamic irises (or are the very expensive JVCs).

As I say repeatedly, take two very good projectors, and compare on bright, and mid-bright scenes, they will look very close to each other, even when considering black levels. Look at some mostly very dark images and especially those without any really bright areas (like the Bond "train" image I use in all reviews), however, and it's almost "night and day" - let's make that "night and dusk". In the case of these two projectors, it really is the black level performance that sets them apart.

Let's look at some side-by-side comparison images, as they relate to black level, and shadow detail performance. Note, the HD20 will be on the left in all of these images, and the HC3800 projector will be on the right.

All of these images show at least some of the difference, but the best of them is the third one down, an overexposed shot of the satellite in Space Cowboys.

Shadow detail

If anything, the HD20 may have the slight advantage in shadow detail, however, I'll attribute that to the idea that mostly, the dark shadow detail is there on the HC3800, but because the same dark shadow detail will project with lower brightness (since the blacks are lower), that detail is harder to see on a projector with better blacks. What I'm trying to say, is, that at first glance, the HD20 may look like it's doing a better job at dark shadow detail, but in reality, they are comparable.

By any measure, the Optoma HD20 does a really very good job in terms of dark shadow detail. The HC3800, by comparison, hangs right in there, yet is still better than, say, the Epson Home Cinema 8100, with which it also competes.

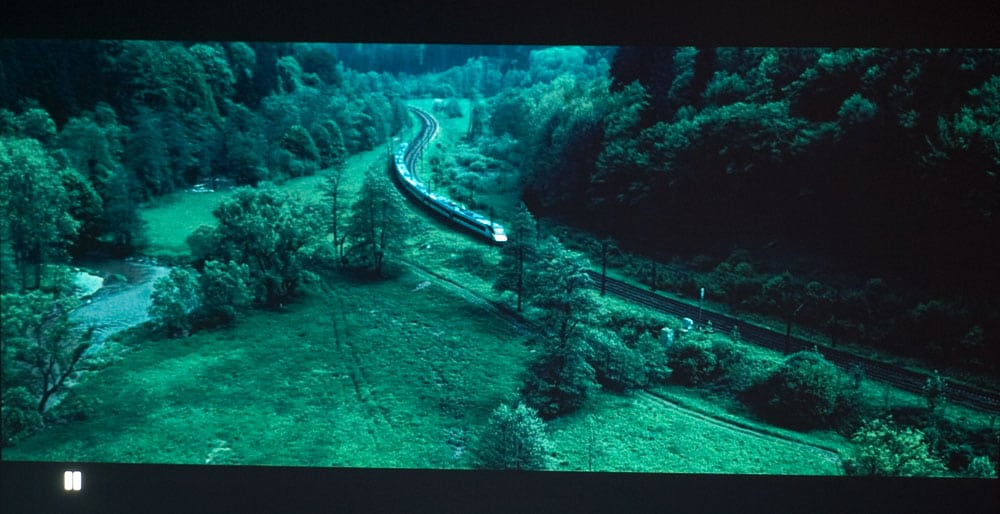

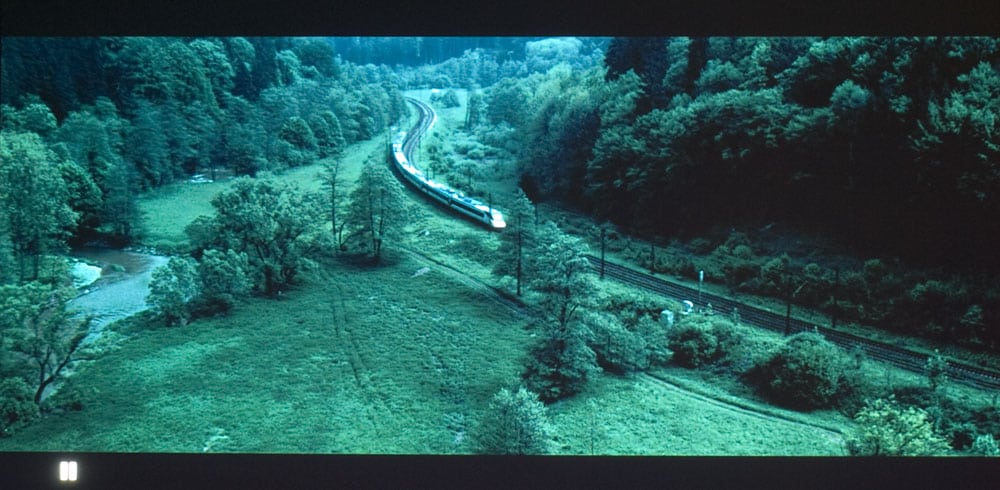

Unfortunately I did not do any side by sides from Casino Royale, but here are the two projectors respective "train" scene images. The first is the HC3800, which is a bit more overexposed. That makes it a difficult to confirm what I have been saying.

HC3800 bond train large
